4XProtect®

PRO-1X1PBXXX

PRO-1X1PBXXX

$374.00 USD

$374.00 USD

Sale Sold out

Select Knockout Blank Cover 22mm Knockout 30mm Knockout

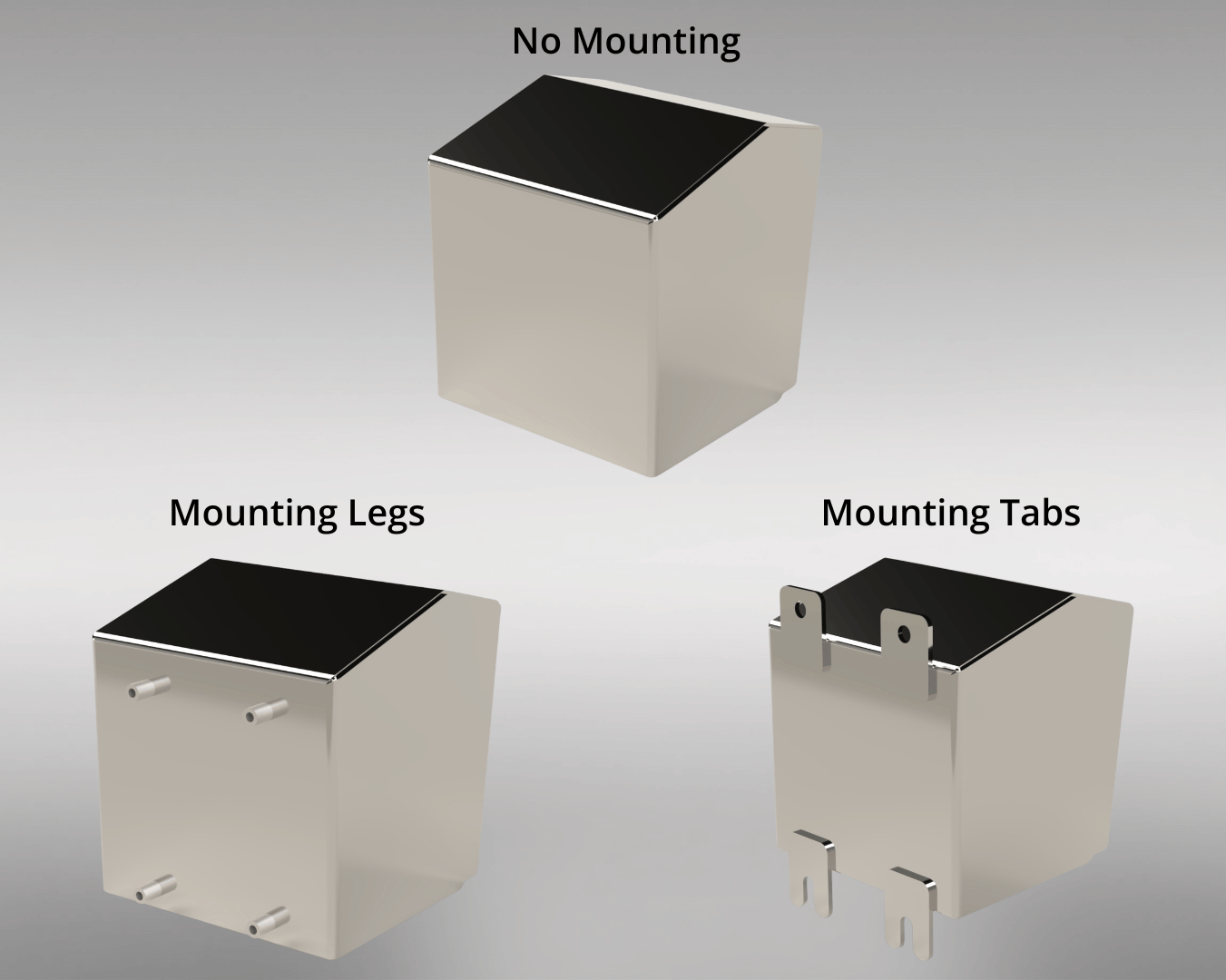

Select Mounting Type No Mounting Mounting Lugs Mounting Tabs

Quantity

In stock

4XProtect® 1x1 Push Button Enclosure, 1 Hole

Specifications

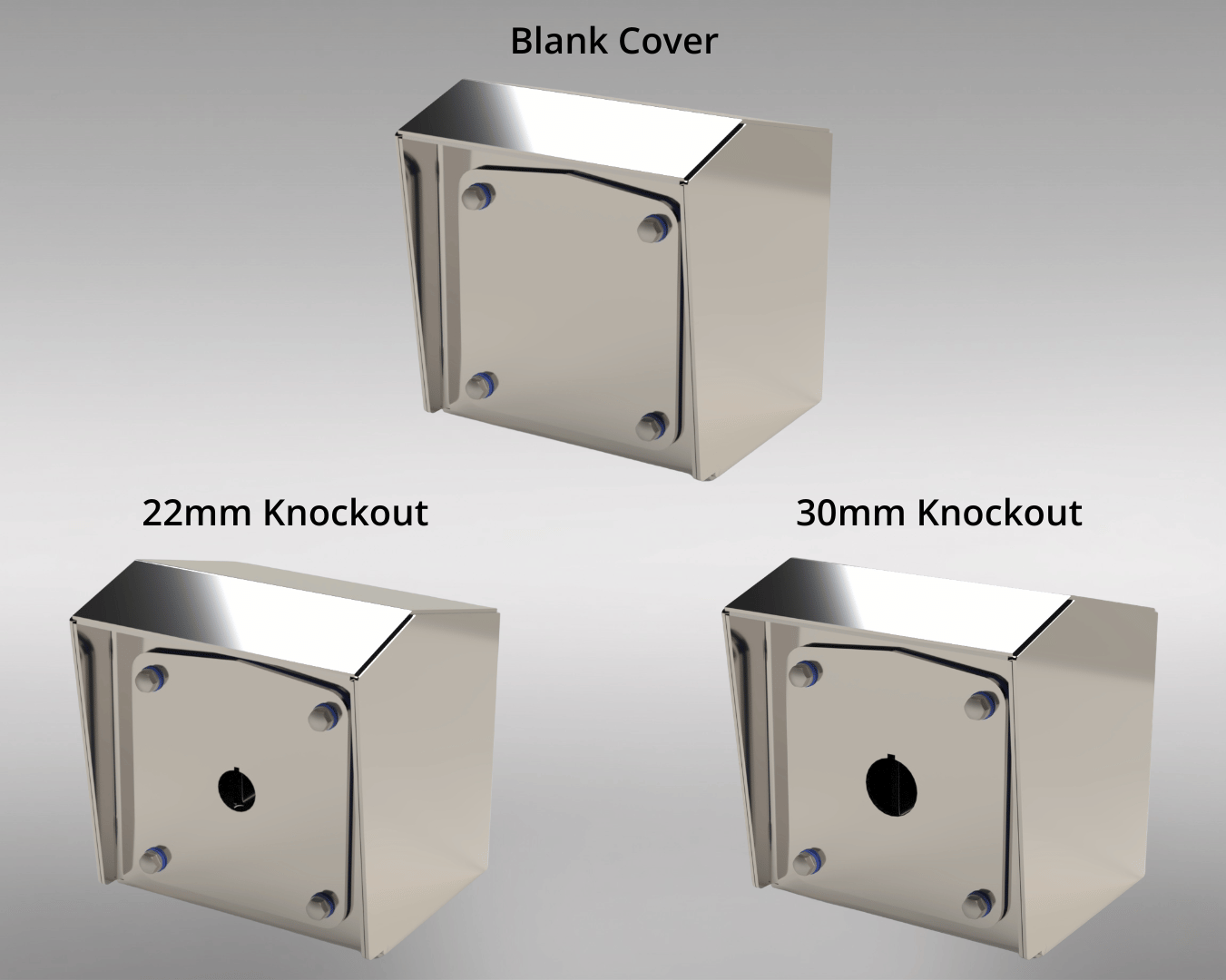

Knockout Options	Blank Cover, 22mm, 30mm
Wall Mounting	Welded Tabs, 1/4"-20 UNC Lugs, No Mounting
Overall Depth	6.5 in
Overall Height	7 in
Overall Width	6.5 in
Weight	10.33 lbs.
Thickness	14 gauge
Material	AISI 304 Stainless Steel
Back Panel	N/A (DIN Rail)
Finish	Brushed #4 Outside w/ 2B Inside Finish
Latch Method	Hygienic Fasteners
Hinge Type	N/A (Bolt-on Cover)
Gasket Material	Silicone Foam
Includes	Grounding Hardware

Standards/Certifications

cULus Listed Type: 1; 3R; 4; 4X; 12
IP Ratings: IP66, IP68, & IP69K
ISO 9001:2015
cUL US Listed
ROHS Compliance
REACH Compliance
Mercury and Asbestos Compliance

View full details

Resources

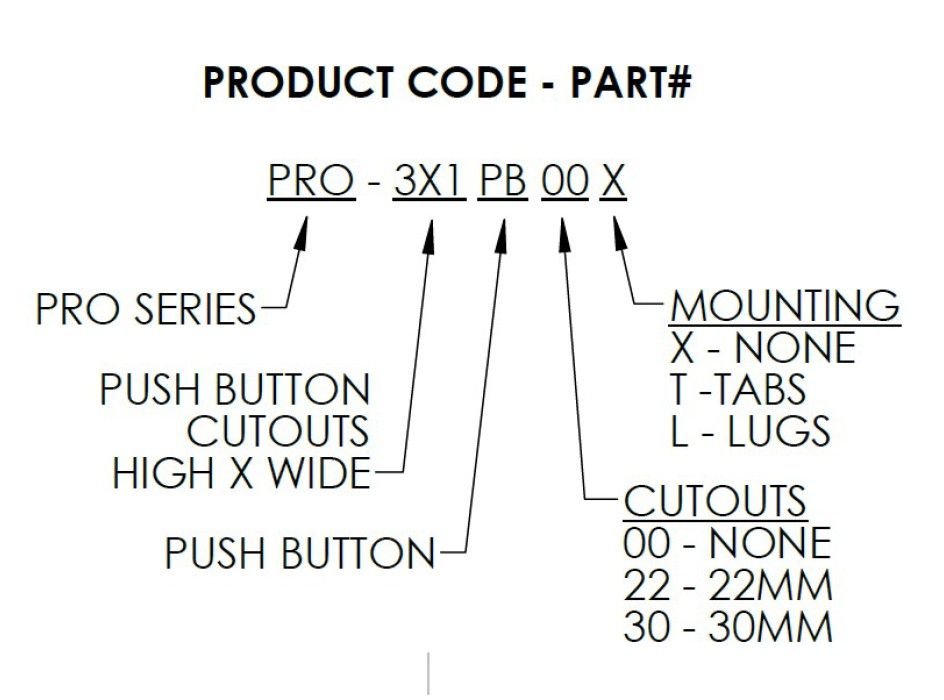

Part #	Technical Drawing (PDF)	DXF File	STEP File

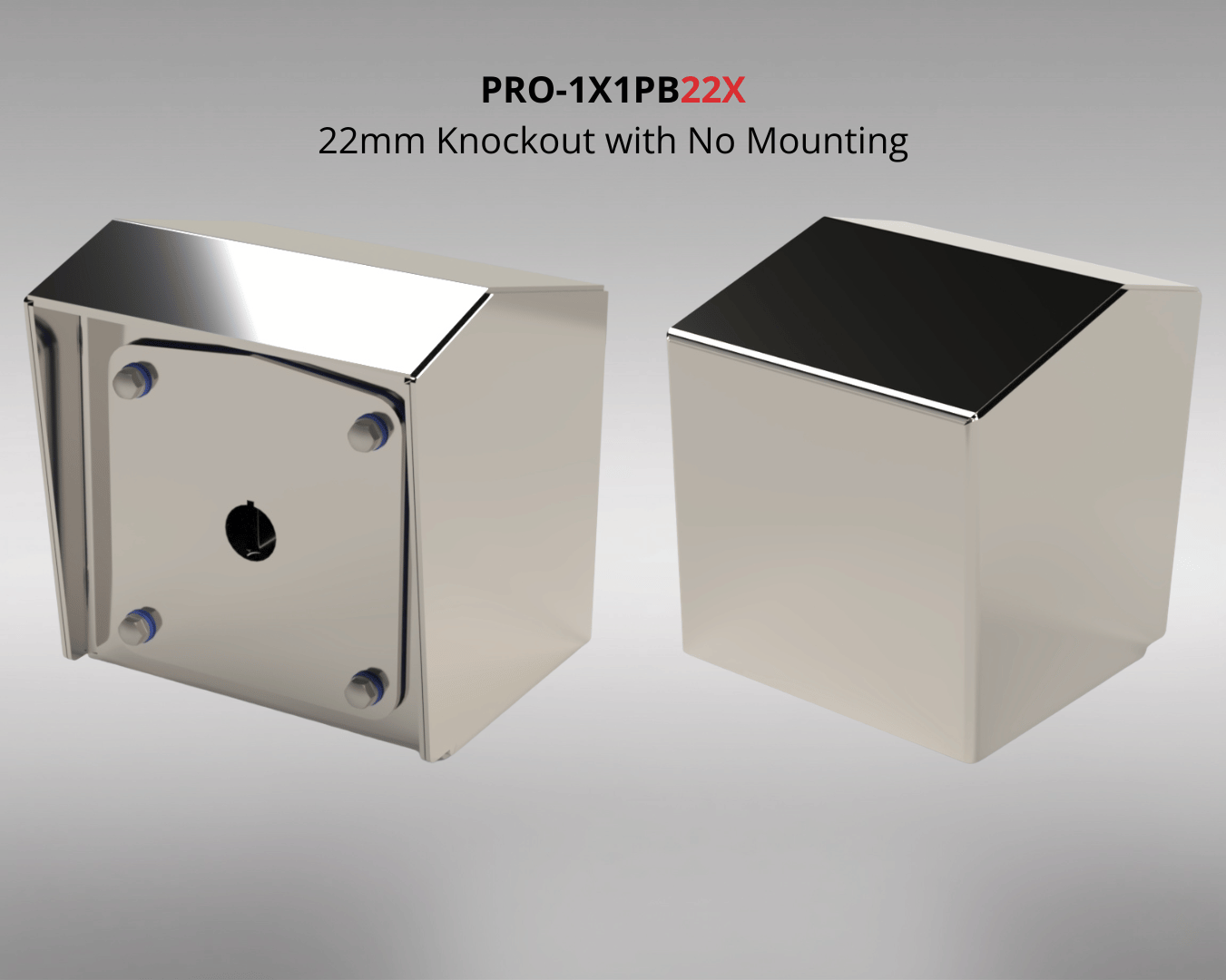

PRO-1X1PB22X	View Drawing	Download DXF	Download STEP

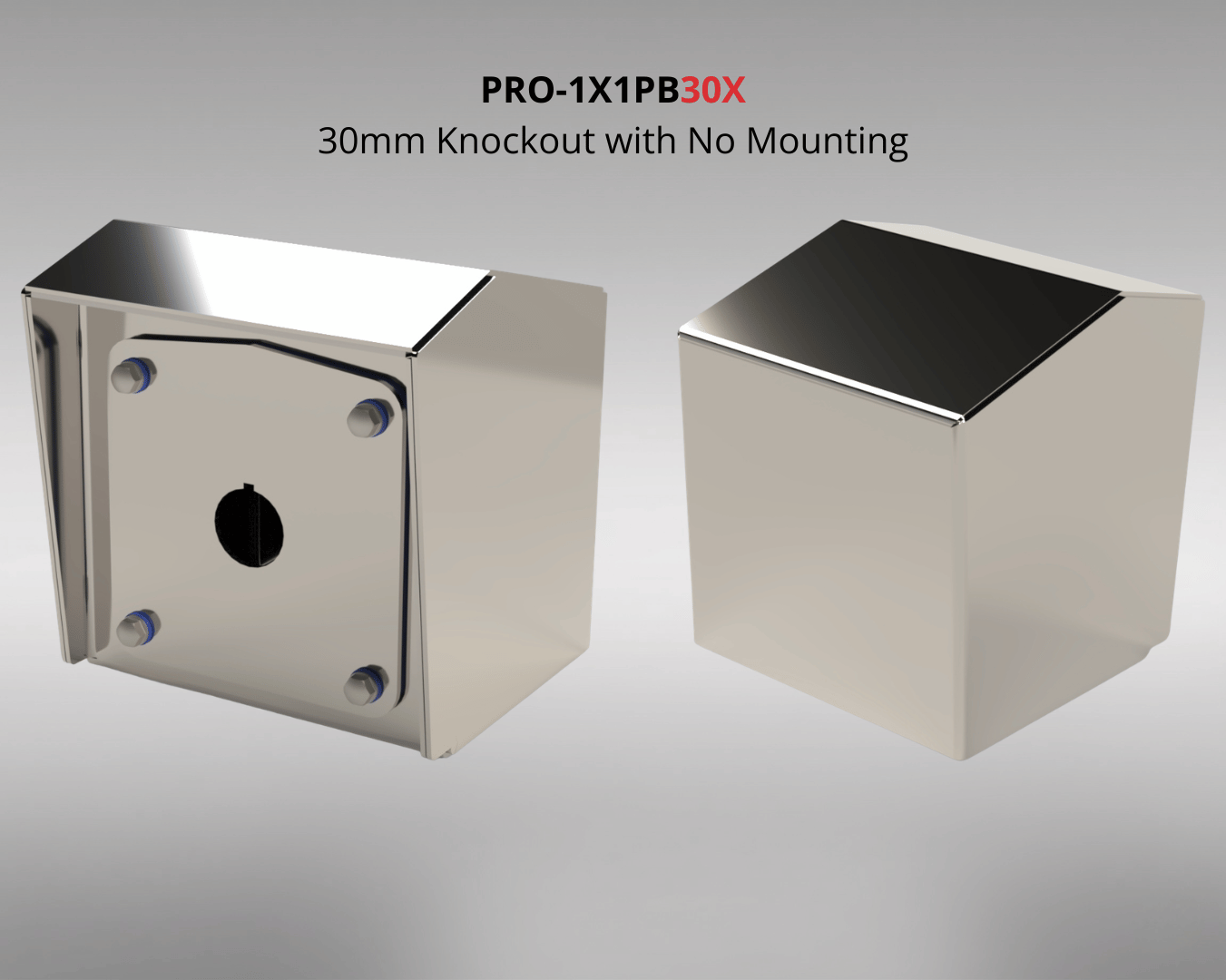

PRO-1X1PB30X	View Drawing	Download DXF	Download STEP

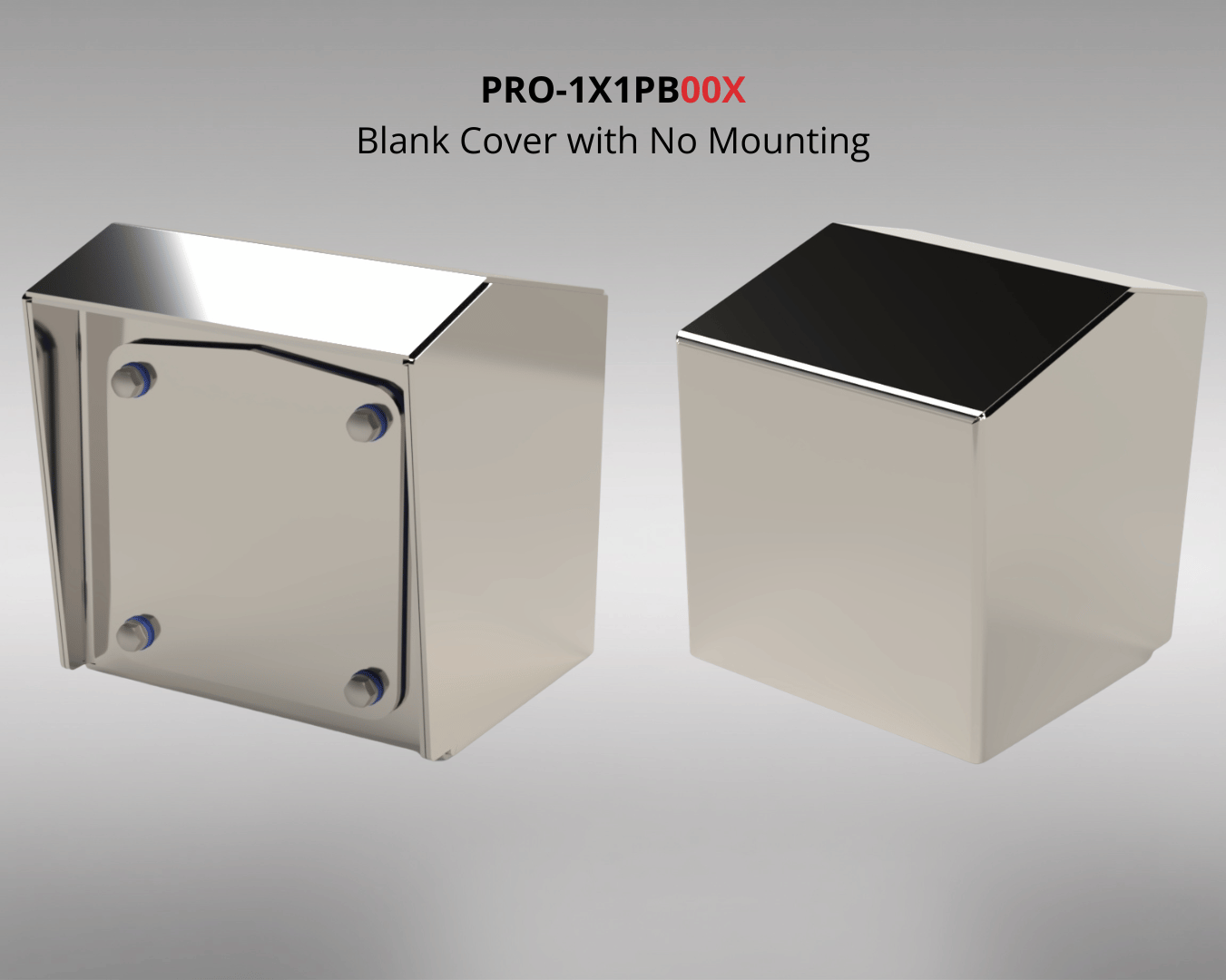

PRO-1X1PB00X	View Drawing	Download DXF	Download STEP

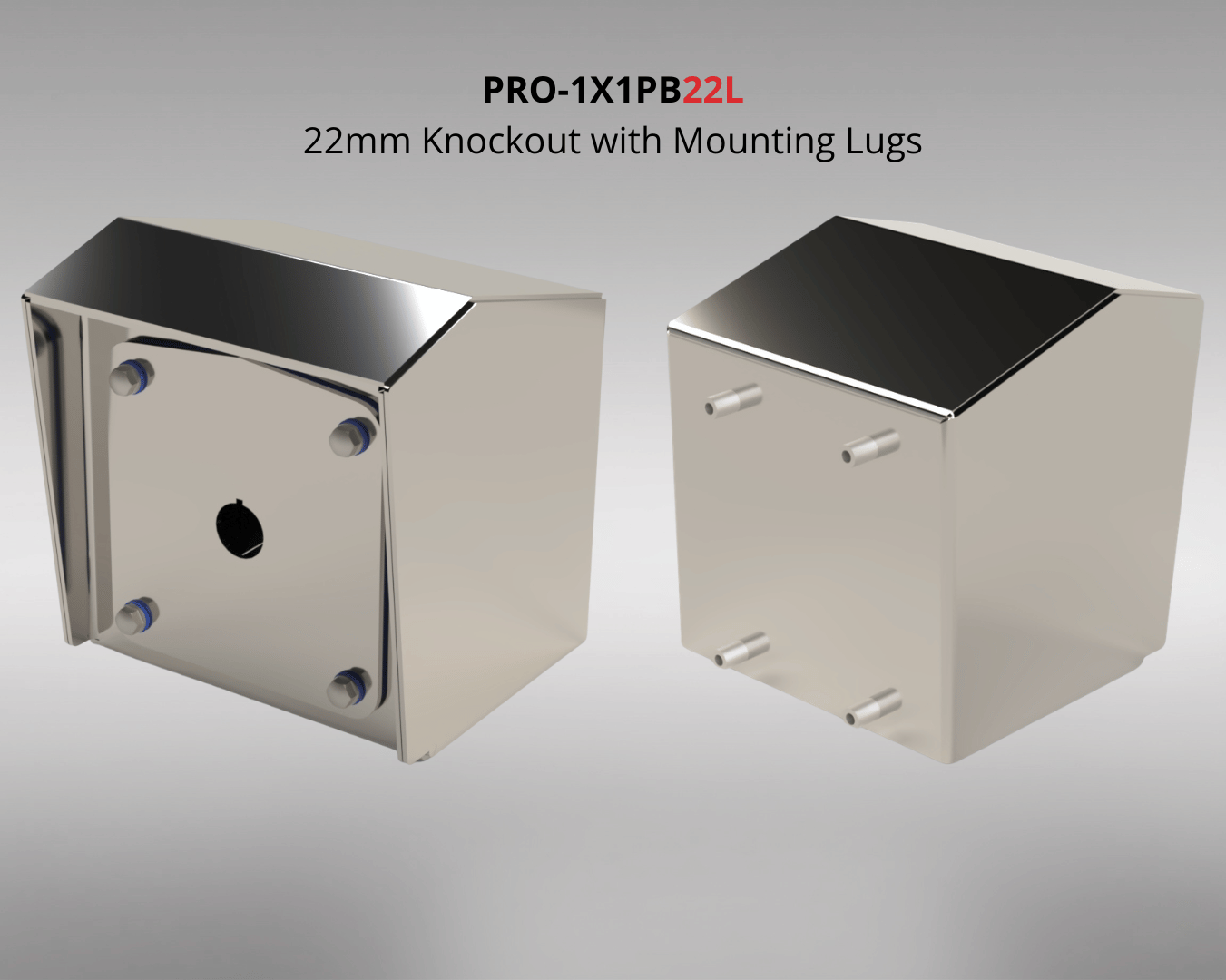

PRO-1X1PB22L	View Drawing	Download DXF	Download STEP

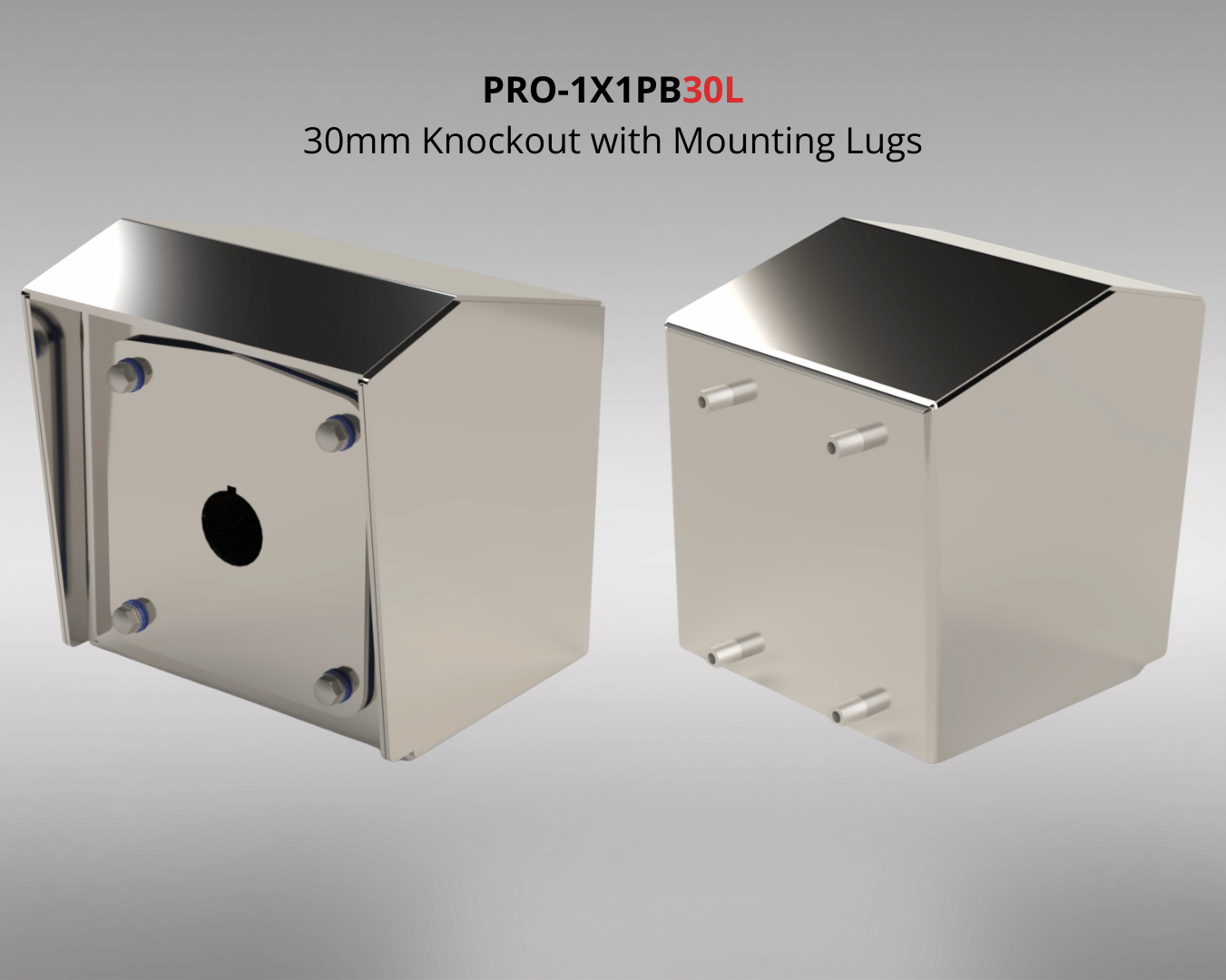

PRO-1X1PB30L	View Drawing	Download DXF	Download STEP

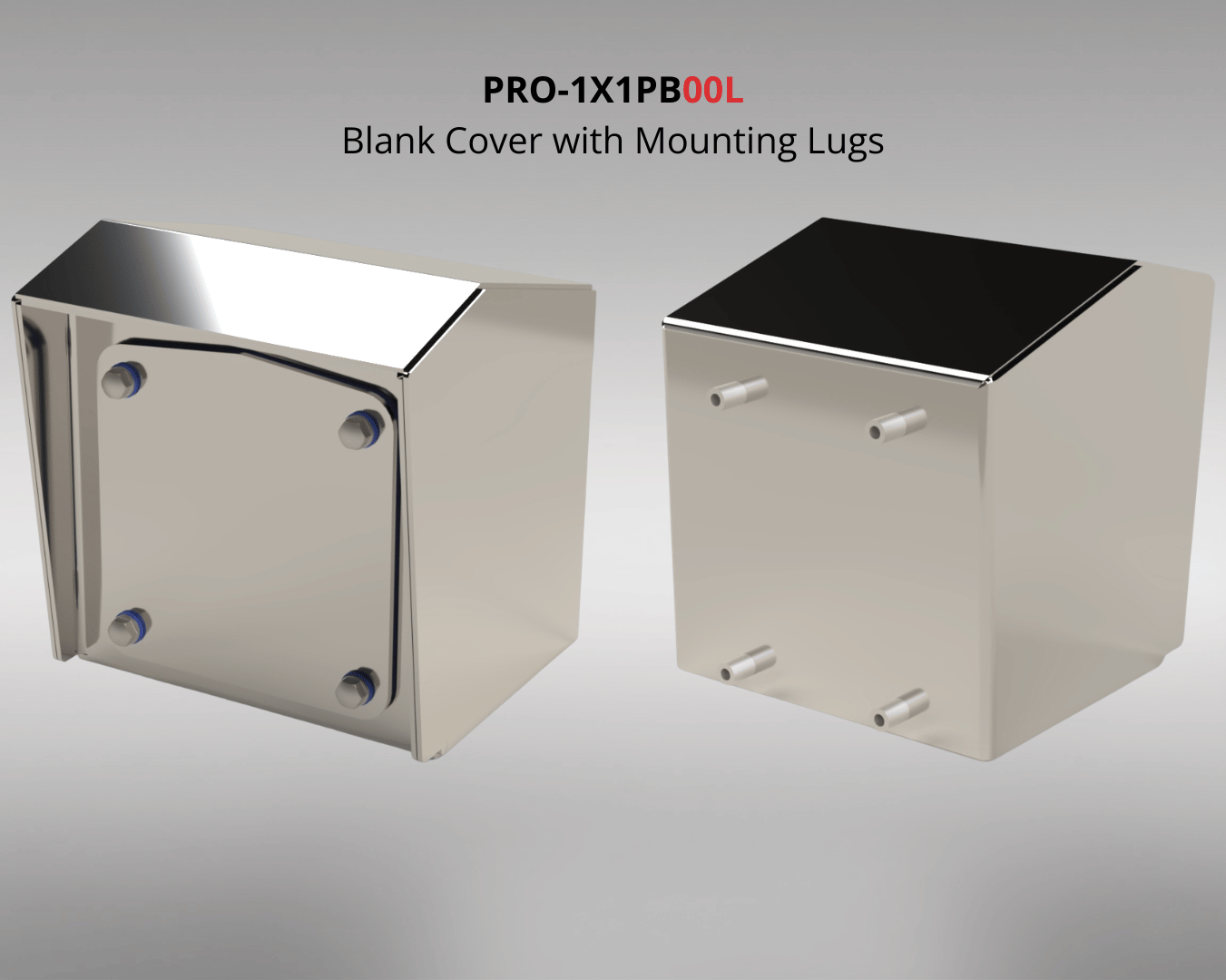

PRO-1X1PB00L	View Drawing	Download DXF	Download STEP

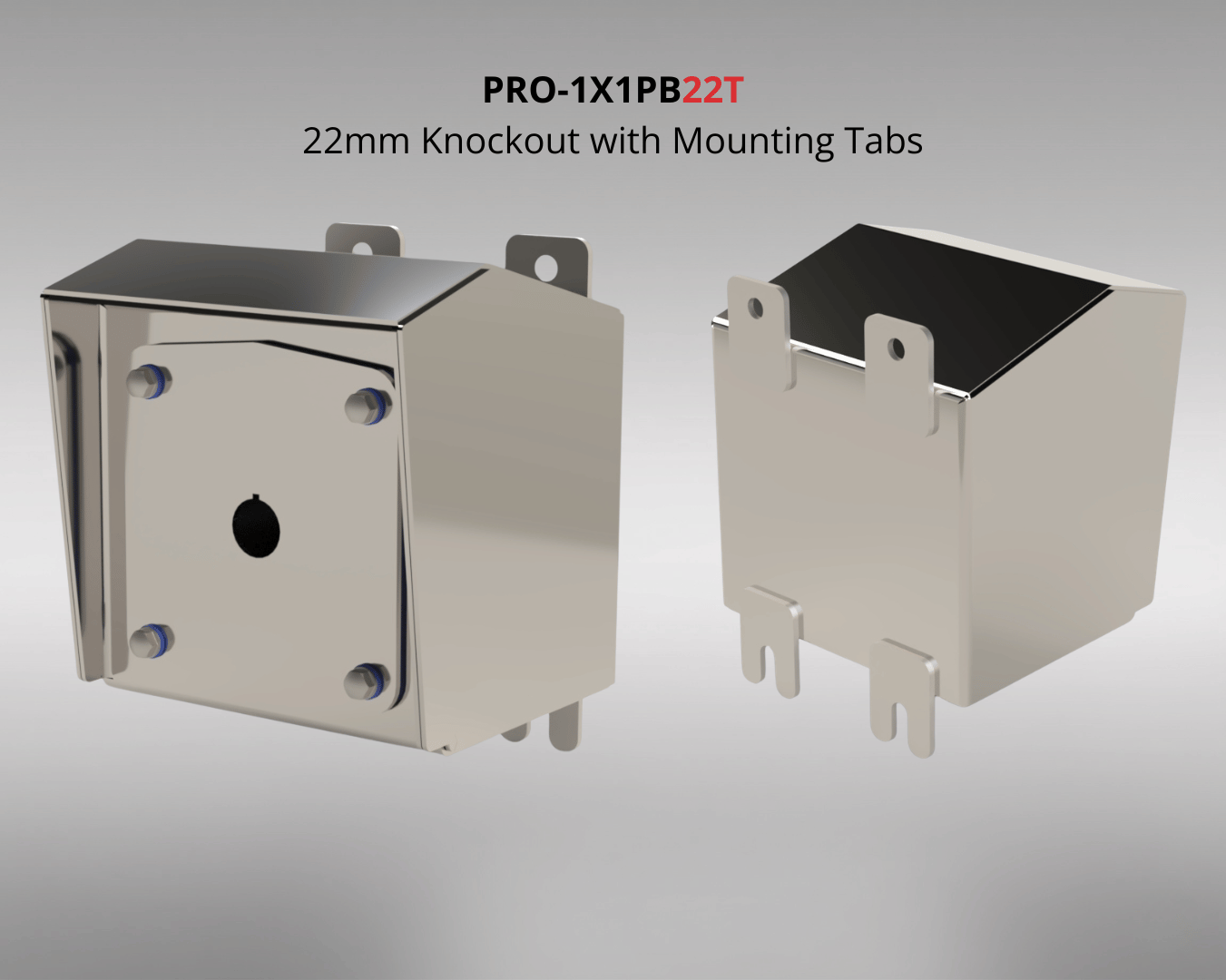

PRO-1X1PB22T	View Drawing	Download DXF	Download STEP

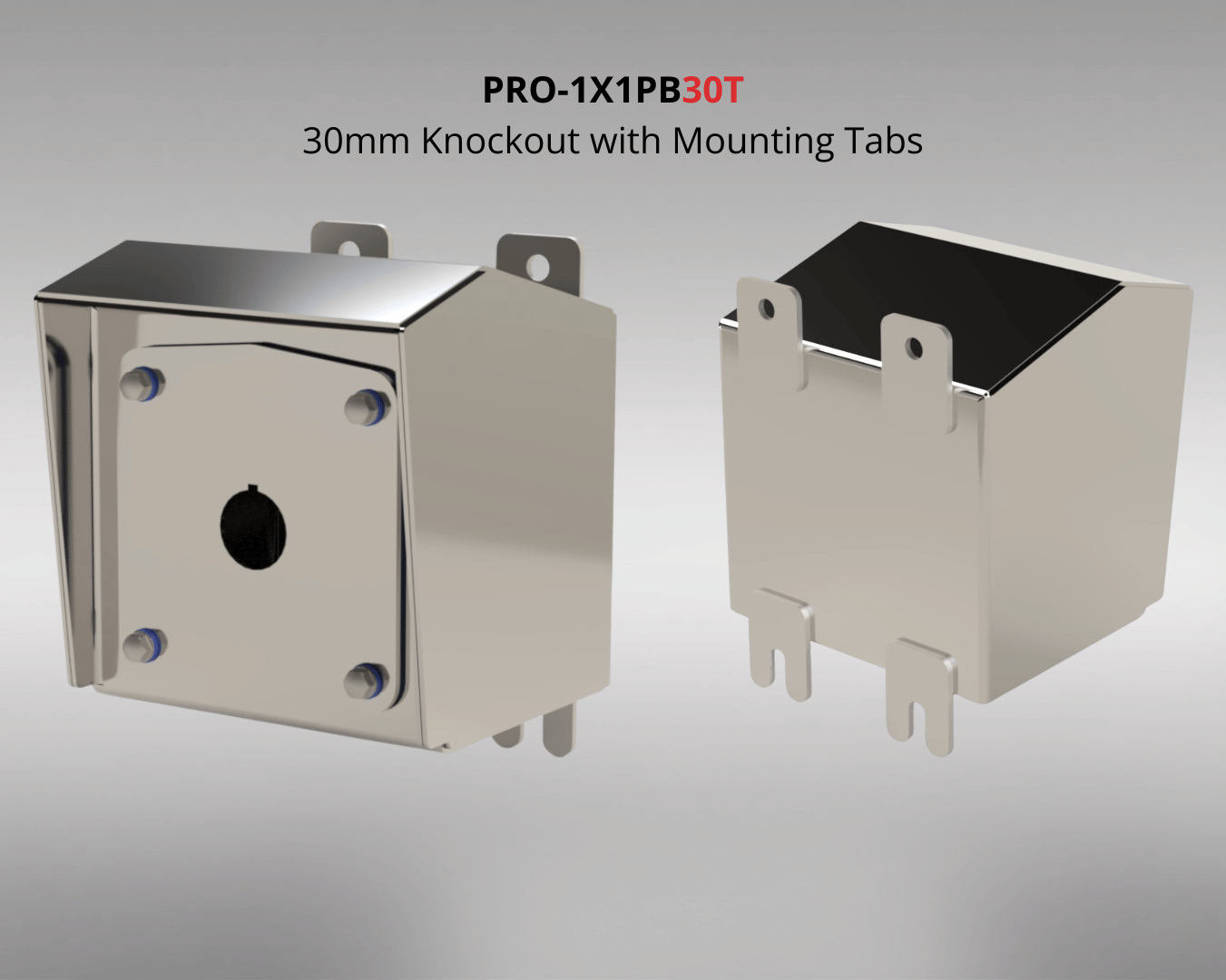

PRO-1X1PB30T	View Drawing	Download DXF	Download STEP

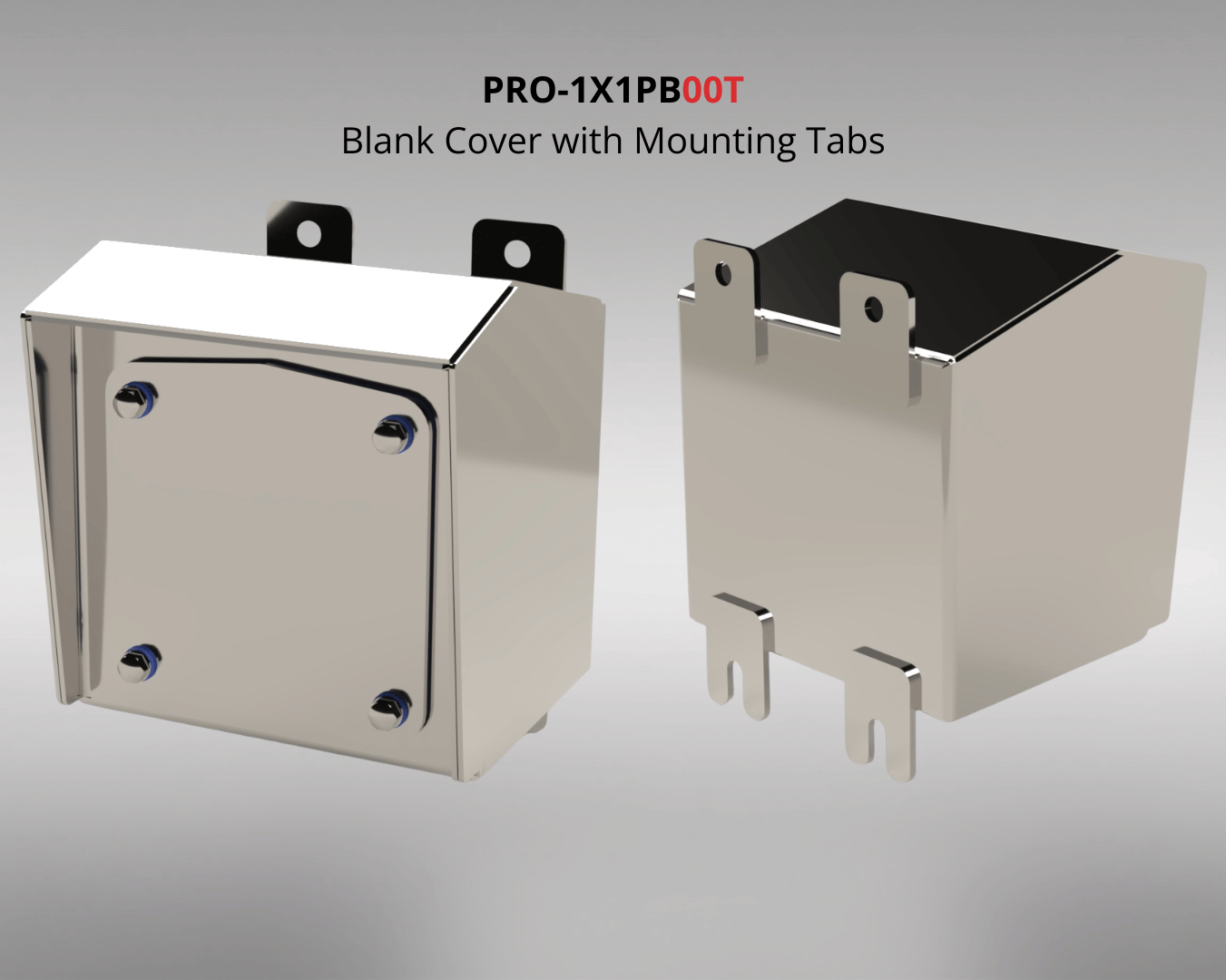

PRO-1X1PB00T	View Drawing	Download DXF	Download STEP
