4XProtect®

PRO-2X1PBXXX

$386.00 USD

Sale Sold out

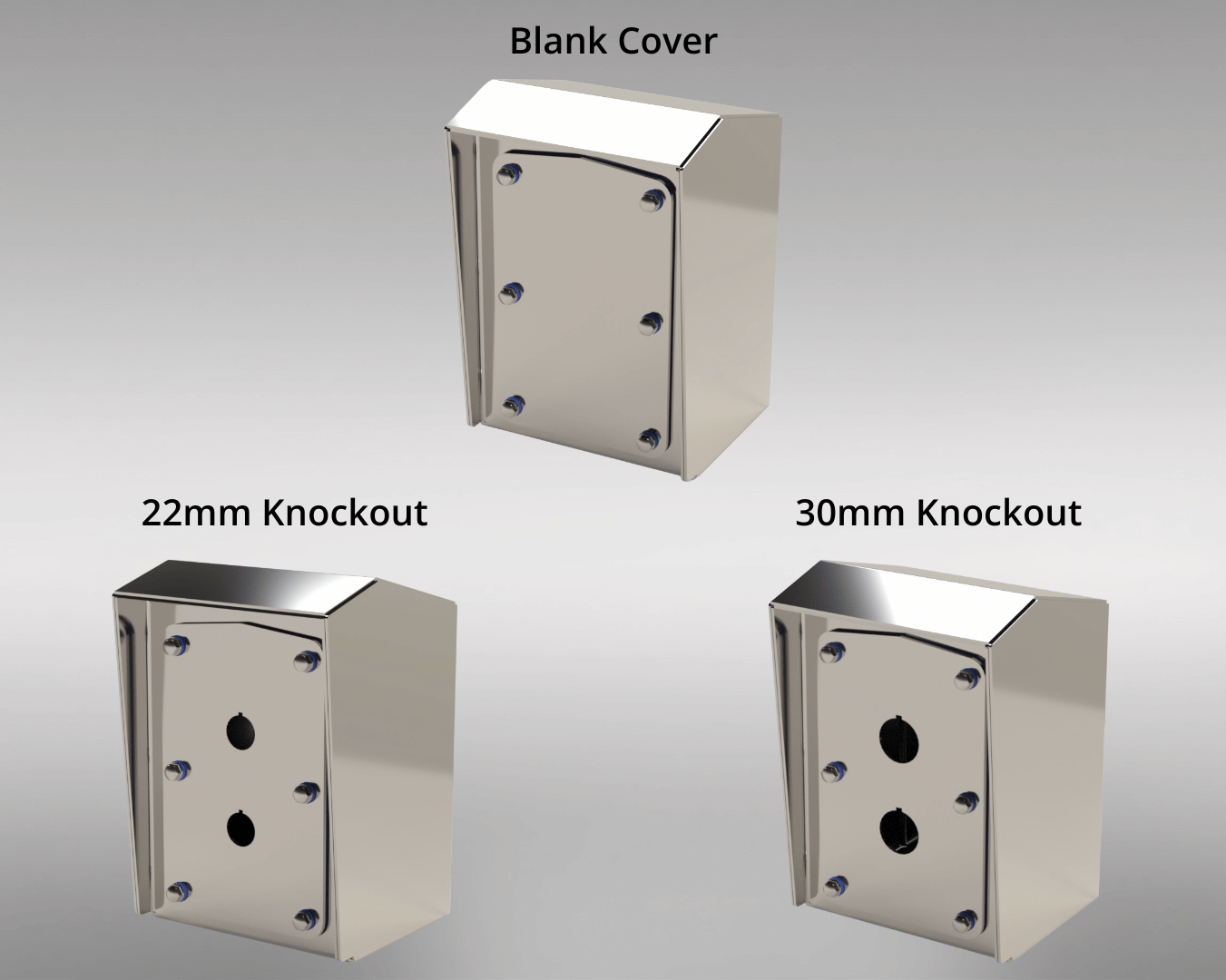

Select Knockout Blank Cover 22mm Knockout 30mm Knockout

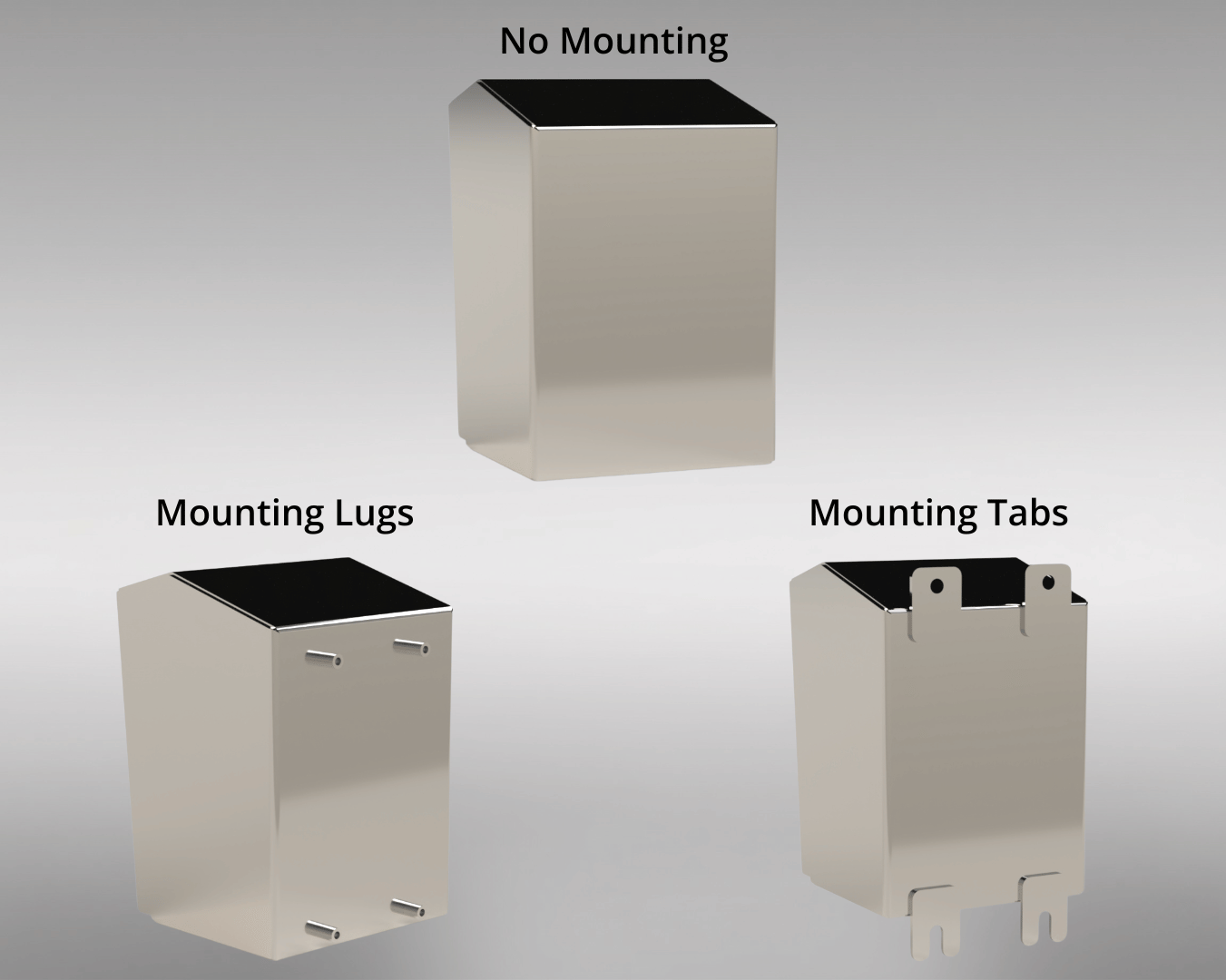

Select Mounting Type No Mounting Mounting Lugs Mounting Tabs

Quantity

In stock

4XProtect® 2x1 Push Button Enclosure, 2 Holes

Knockout Options	Blank Cover, 22mm, 30mm
Wall Mounting	Welded Tabs, 1/4"-20 UNC Lugs, No Mounting
Overall Depth	6.5 in
Overall Height	9.5 in
Overall Width	6.5 in
Weight	12.92 lbs.
Thickness	14 gauge
Material	AISI 304 Stainless Steel
Back Panel	N/A (DIN Rail)
Finish	Brushed #4 Outside w/ 2B Inside Finish
Latch Method	Hygienic Fasteners
Hinge Type	N/A (Bolt-on Cover)
Gasket Material	Silicone Foam
Includes	Grounding Hardware

Need a Custom Push Button Enclosure built to your exact requirements?

Contact us or call (651) 500-3650 for more options.

Part #	Technical Drawing (PDF)	DXF File	STEP File

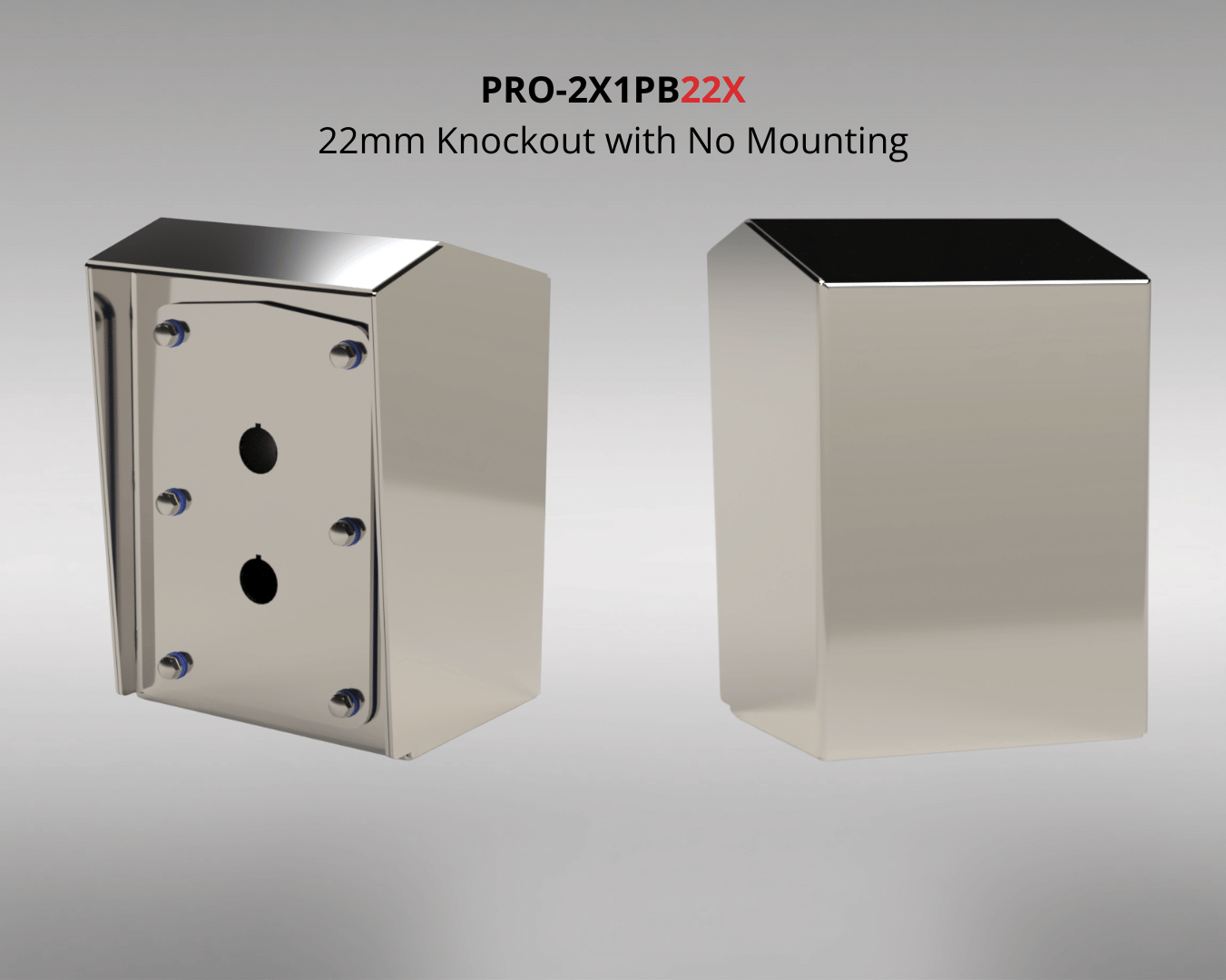

PRO-2X1PB22X	View Drawing	Download DXF	Download STEP

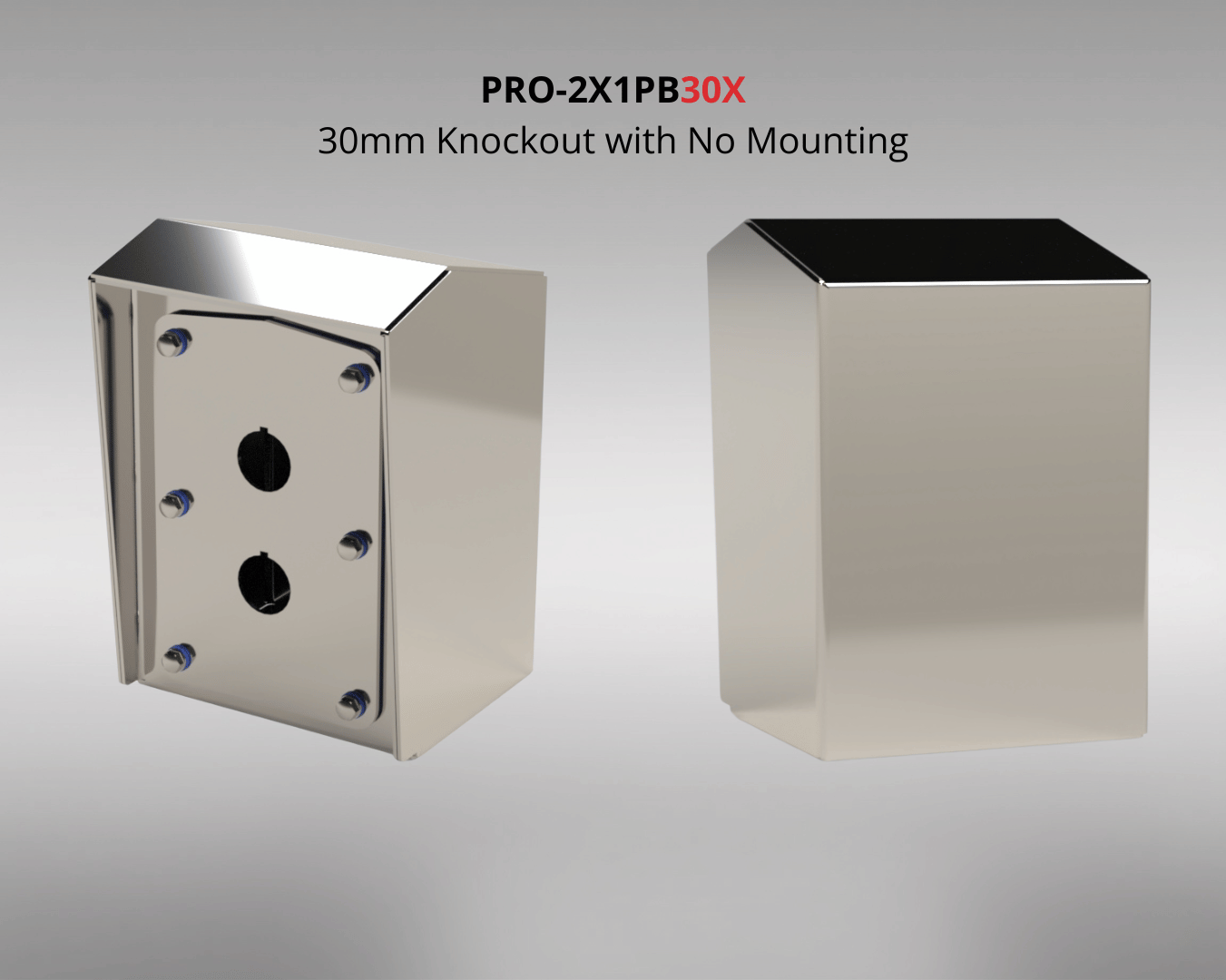

PRO-2X1PB30X	View Drawing	Download DXF	Download STEP

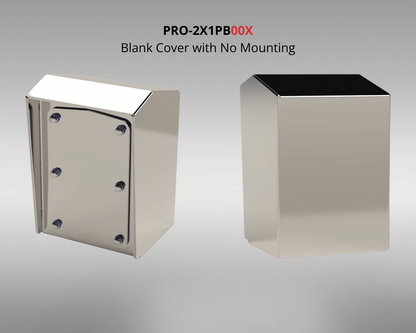

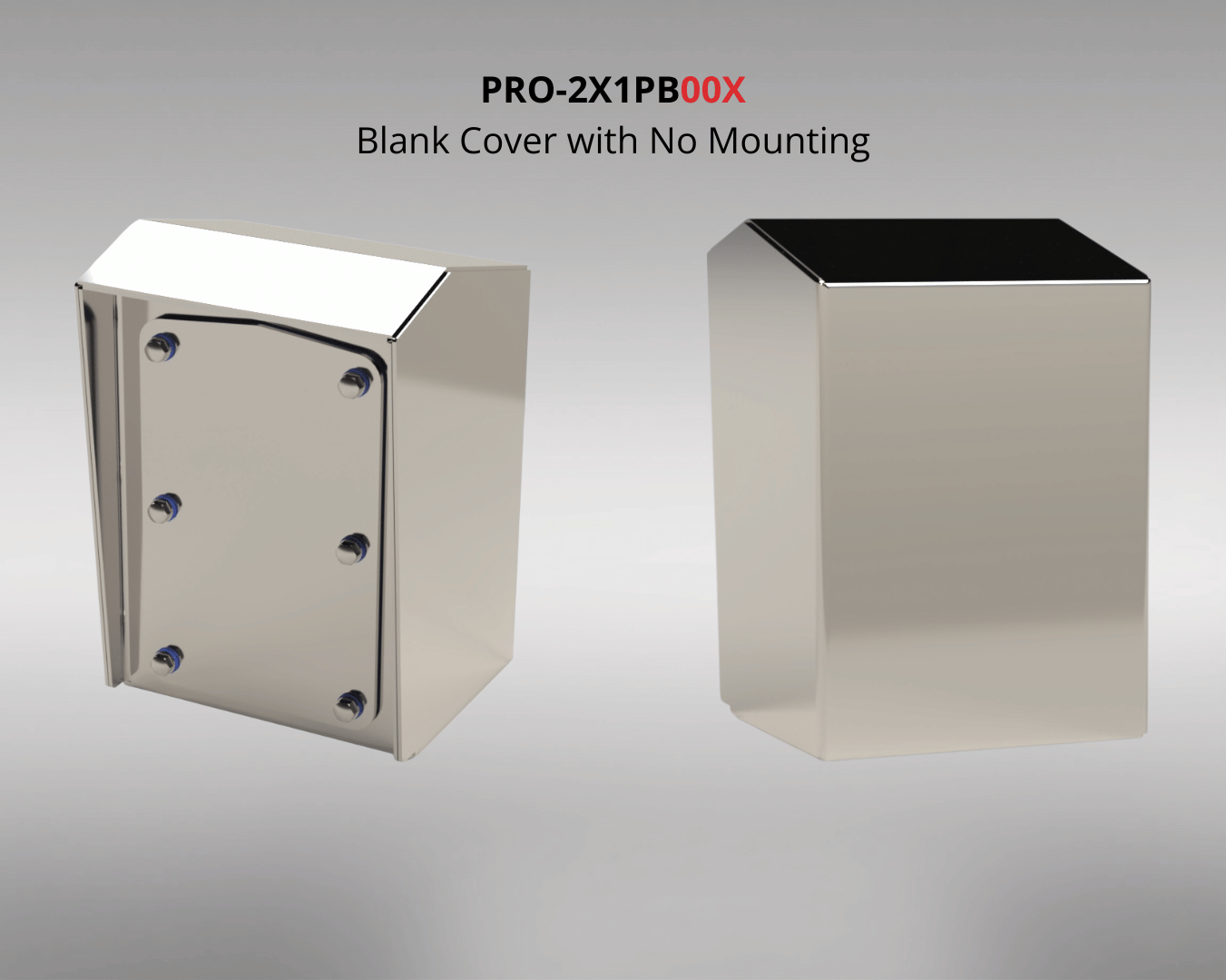

PRO-2X1PB00X	View Drawing	Download DXF	Download STEP

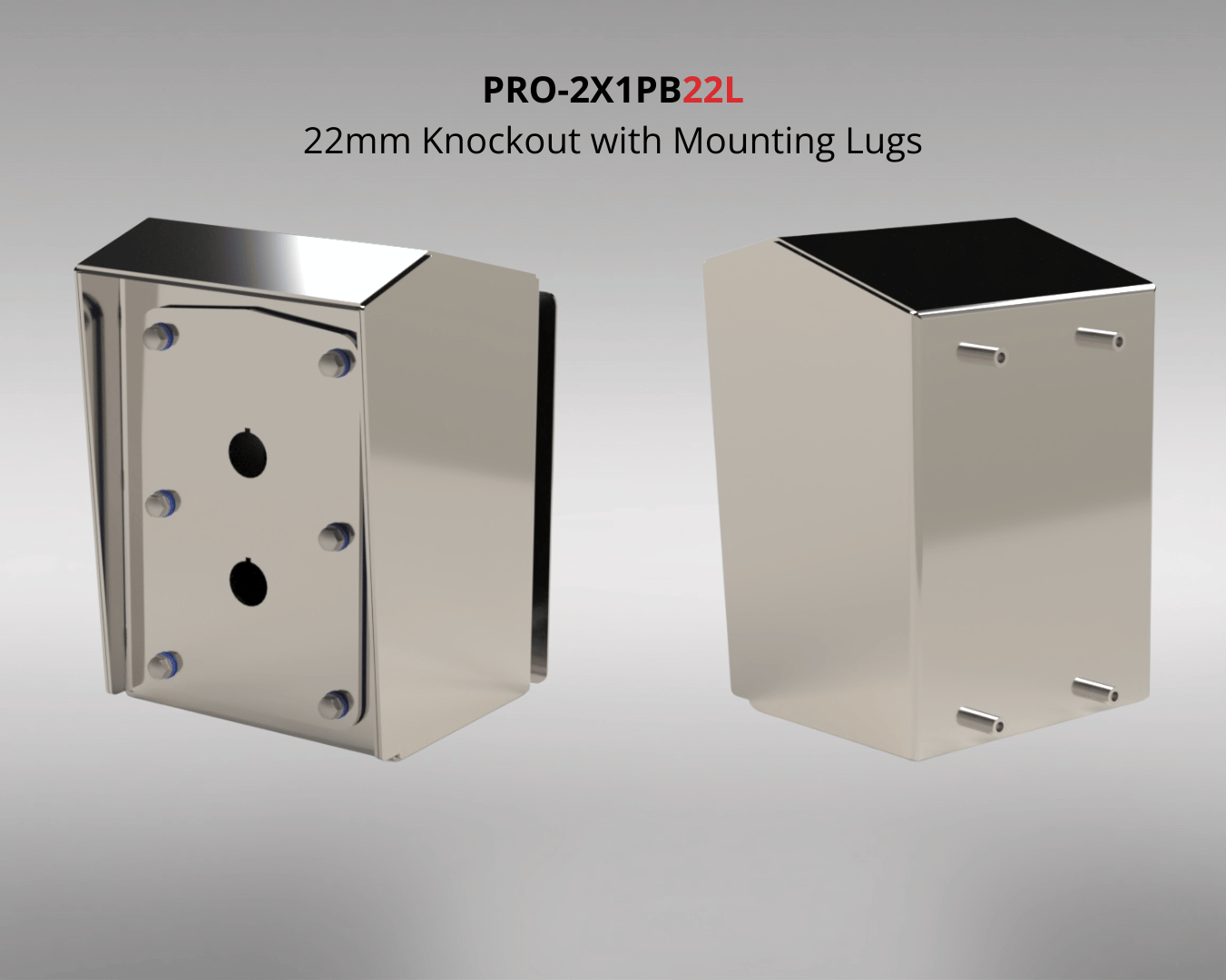

PRO-2X1PB22L	View Drawing	Download DXF	Download STEP

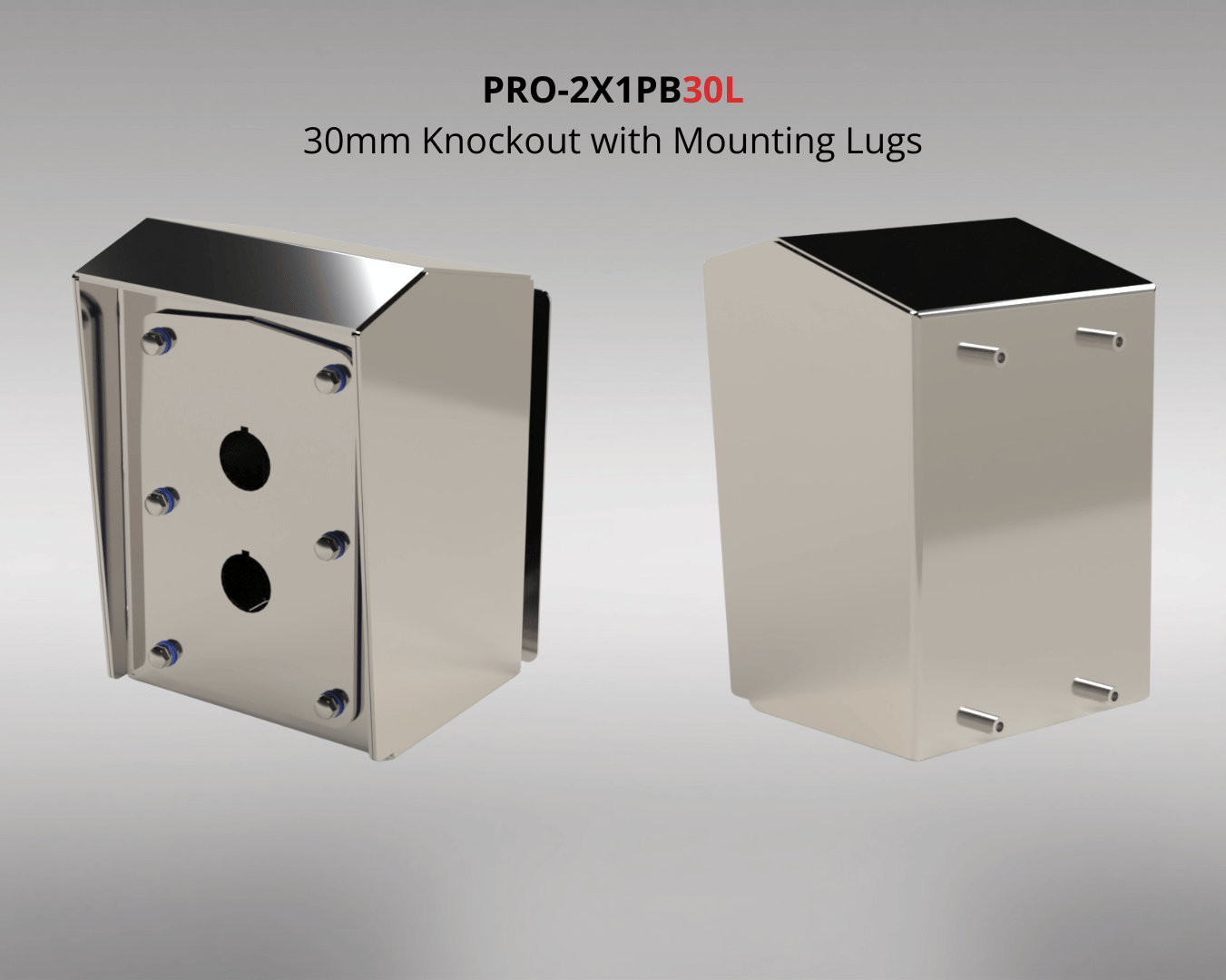

PRO-2X1PB30L	View Drawing	Download DXF	Download STEP

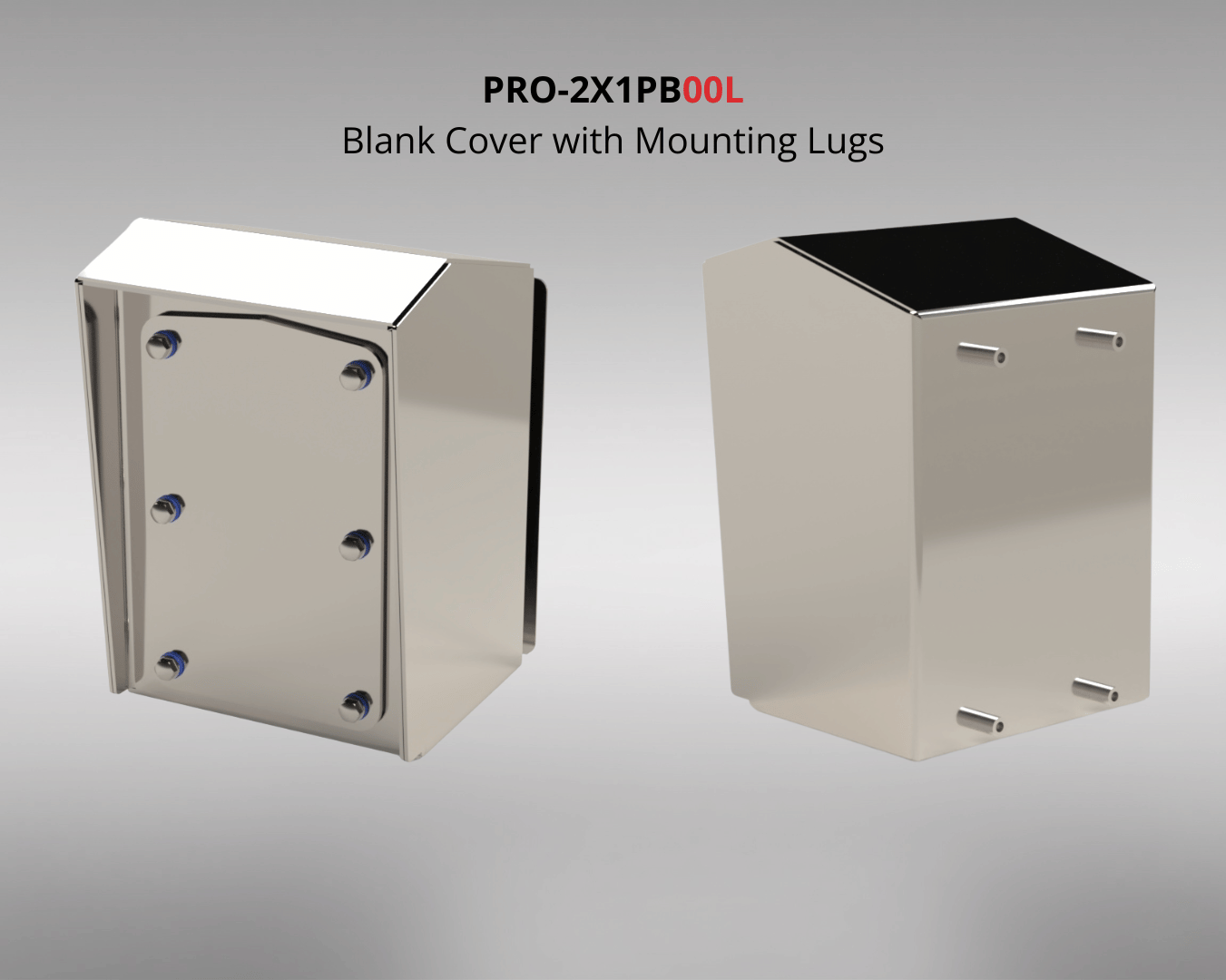

PRO-2X1PB00L	View Drawing	Download DXF	Download STEP

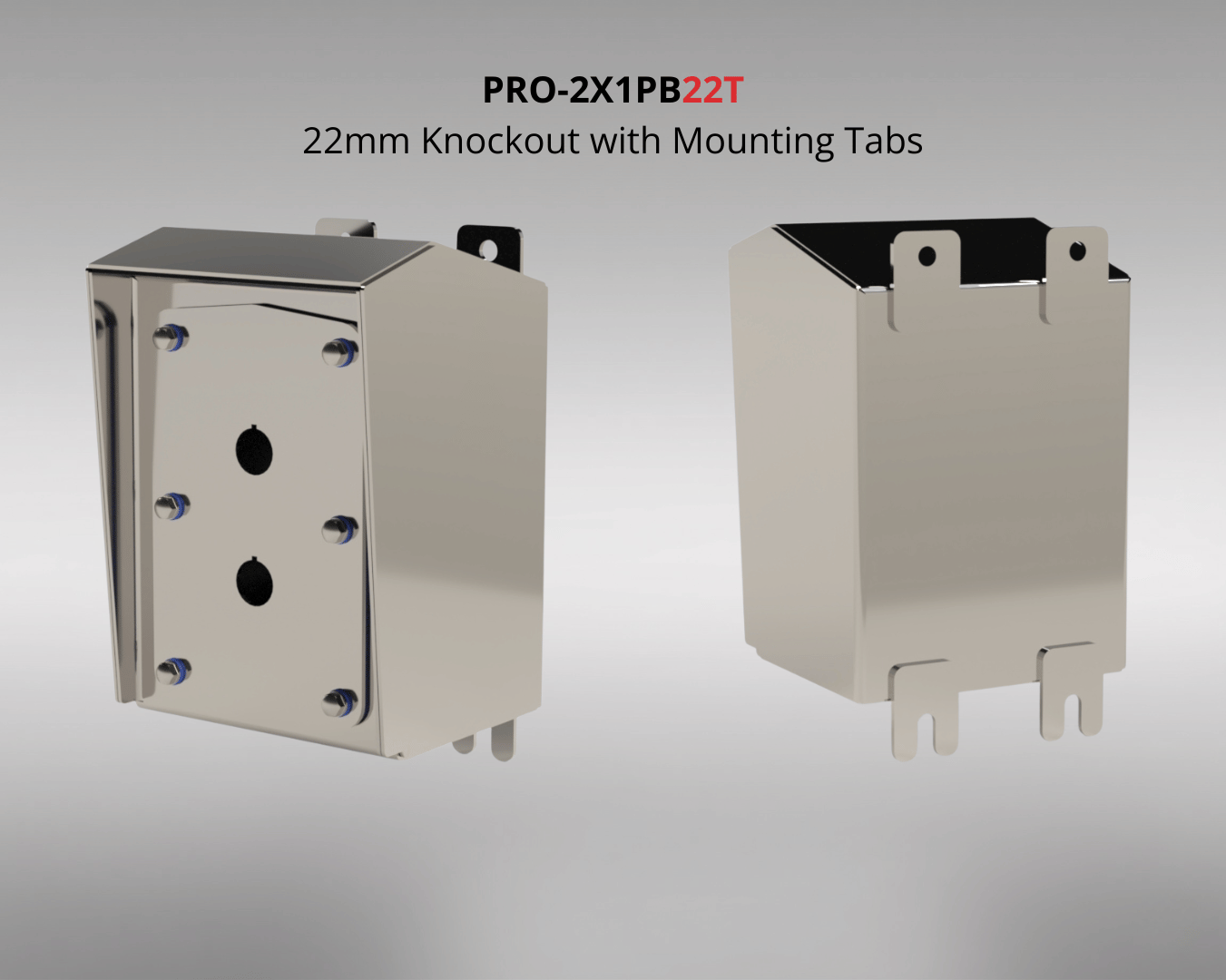

PRO-2X1PB22T	View Drawing	Download DXF	Download STEP

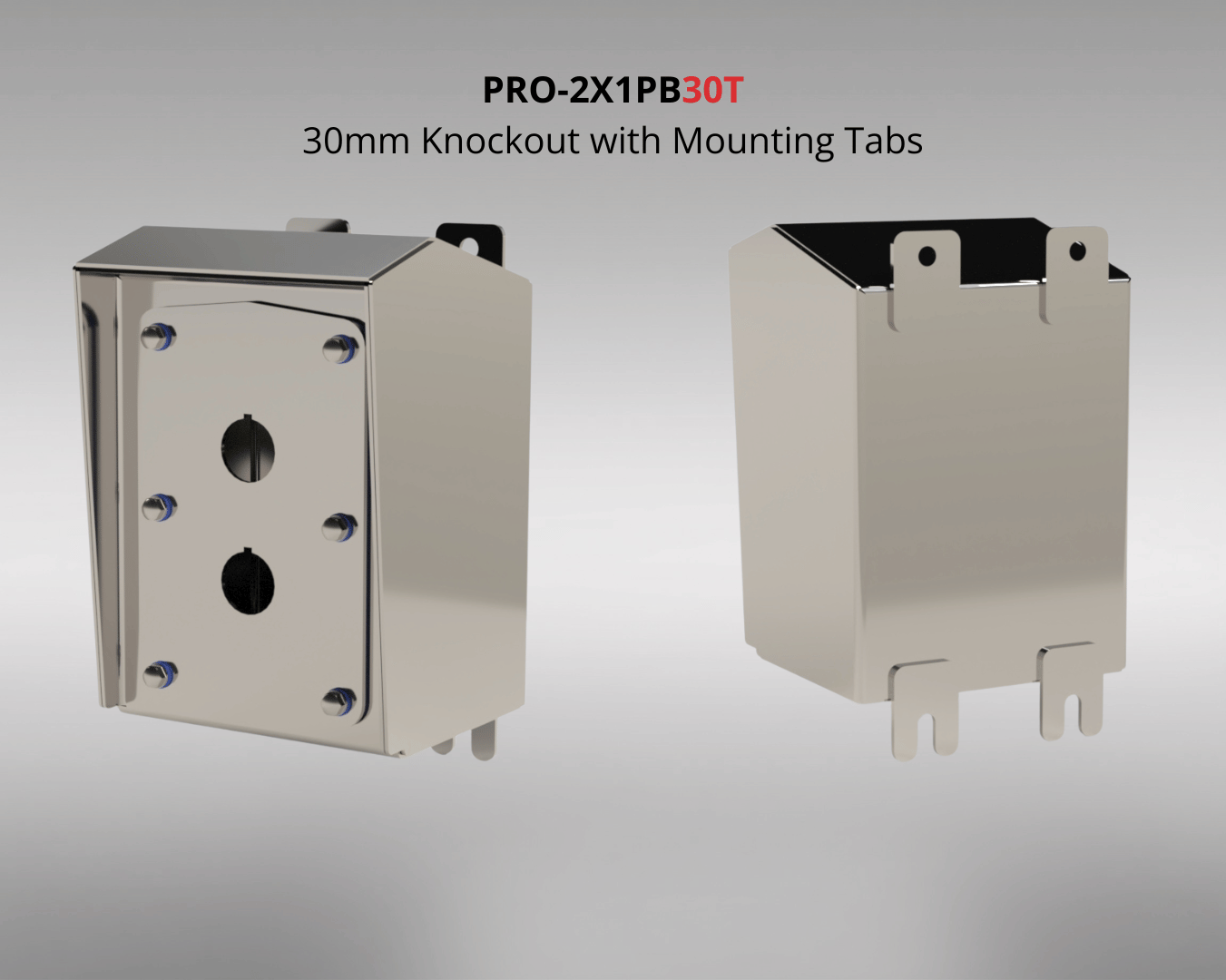

PRO-2X1PB30T	View Drawing	Download DXF	Download STEP

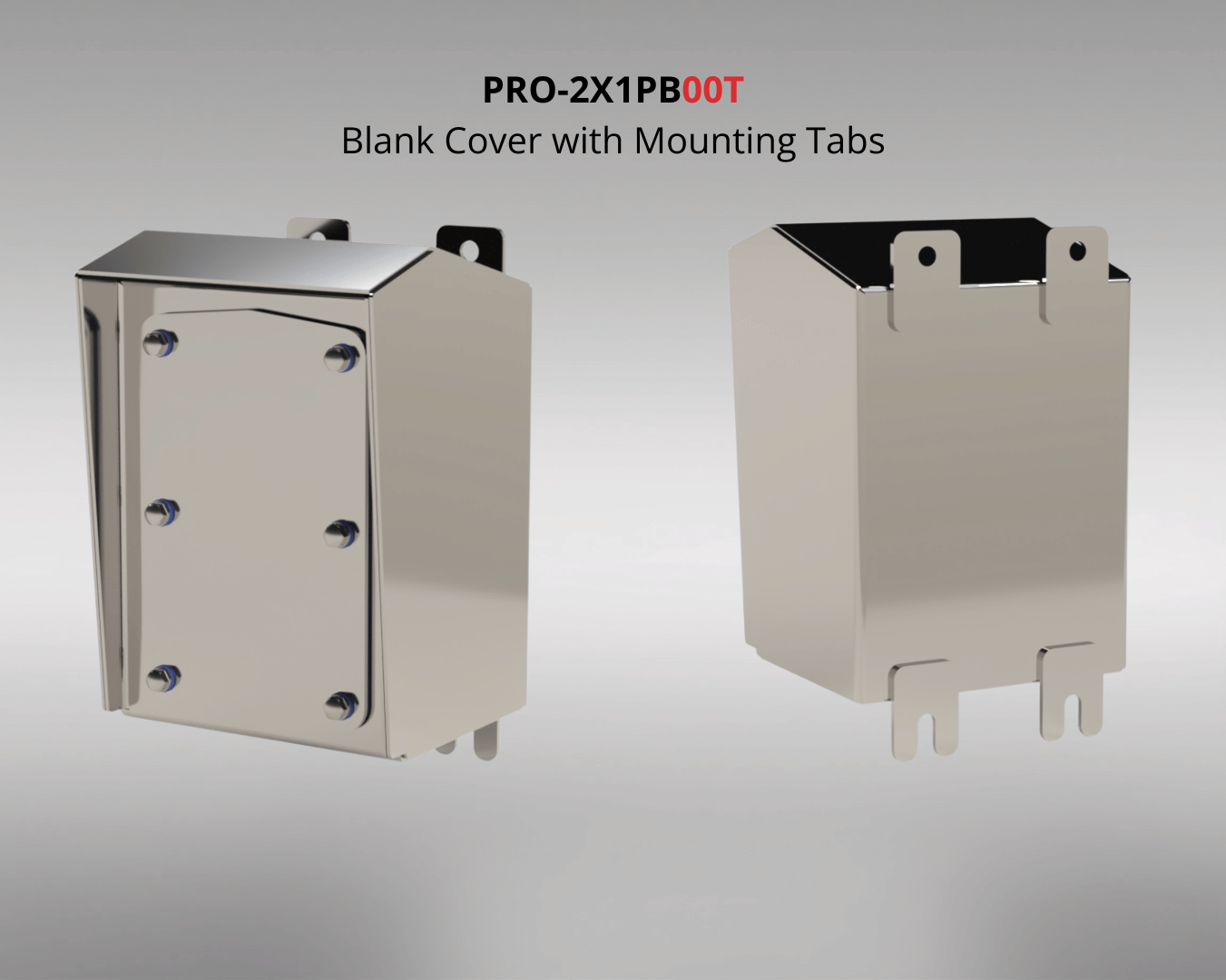

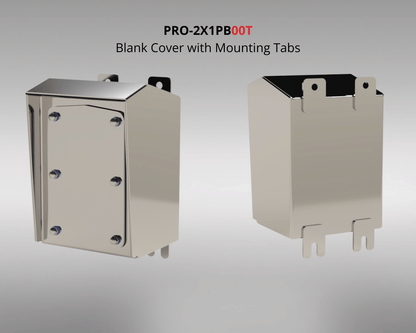

PRO-2X1PB00T	View Drawing	Download DXF	Download STEP

Send us your specs for custom enclosures designed exactly to your requirements.
