XBFL2D606018D15

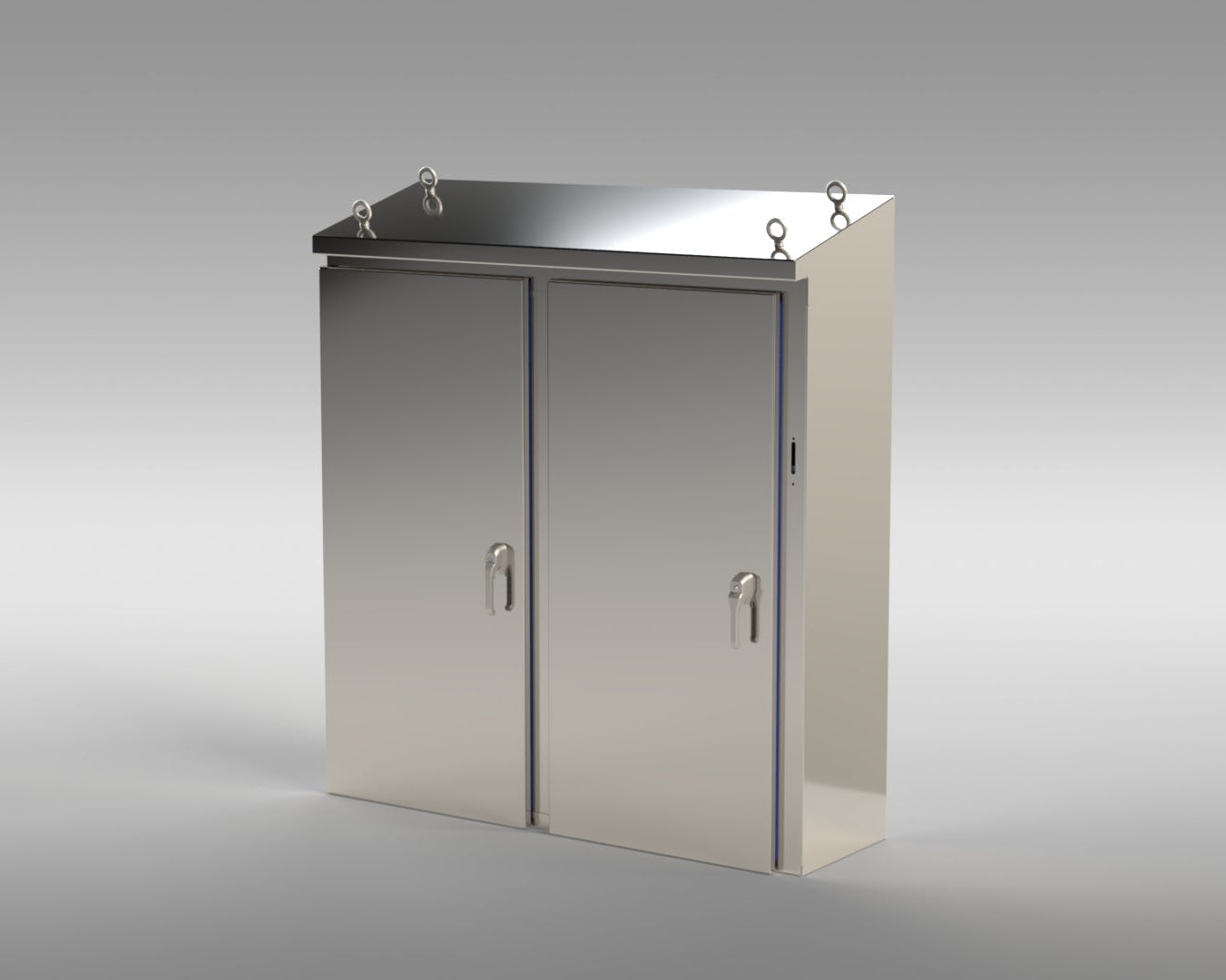

60H × 60W × 18D – Two-Door Slope Forward Flanged Disconnect Stainless Steel Enclosure

With Defeater Handle and Patented Double Seal & Double Stud Technologies

Specifications

• Enclosure Height: 69.96″
• Door Height: 60.00″
• Width: 60.00″
• Depth: 18.00″
• Pitch: °15.00 Sloped Forward
• Weight: 625.17 lbs
• Enclosure Type: Two Door Flanged Disconnect
• Thickness: 12 gauge
• Material: AISI 304 Stainless Steel
• Compatible Back Panel: X60P60G (Galvanized)
• Finish: Brushed #4 Outside w/ 2B Inside Finish
• Latch Method: Defeater Handle
• Hinge Type: Hygienic Bullet Hinge
• Seal Design: Patented Double Seal Technology
• Mount Type: Patented 3/8"-16 UNC Double Stud Wall-Mount
• Gasket Material: Blue EPDM - Field Replaceable
• Includes: Grounding Hardware, Printer Pocket, Lifting Eyes
