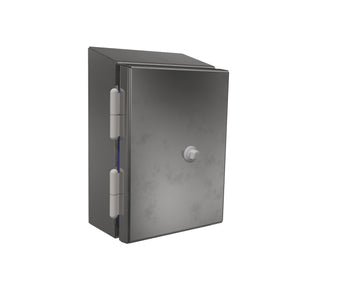

XSF100804H15

10H × 8W × 4D – Slope Forward Stainless Steel Single-Door Enclosure

with Hygienic Quarter Turn and Patented Double Seal & Double Stud Technologies

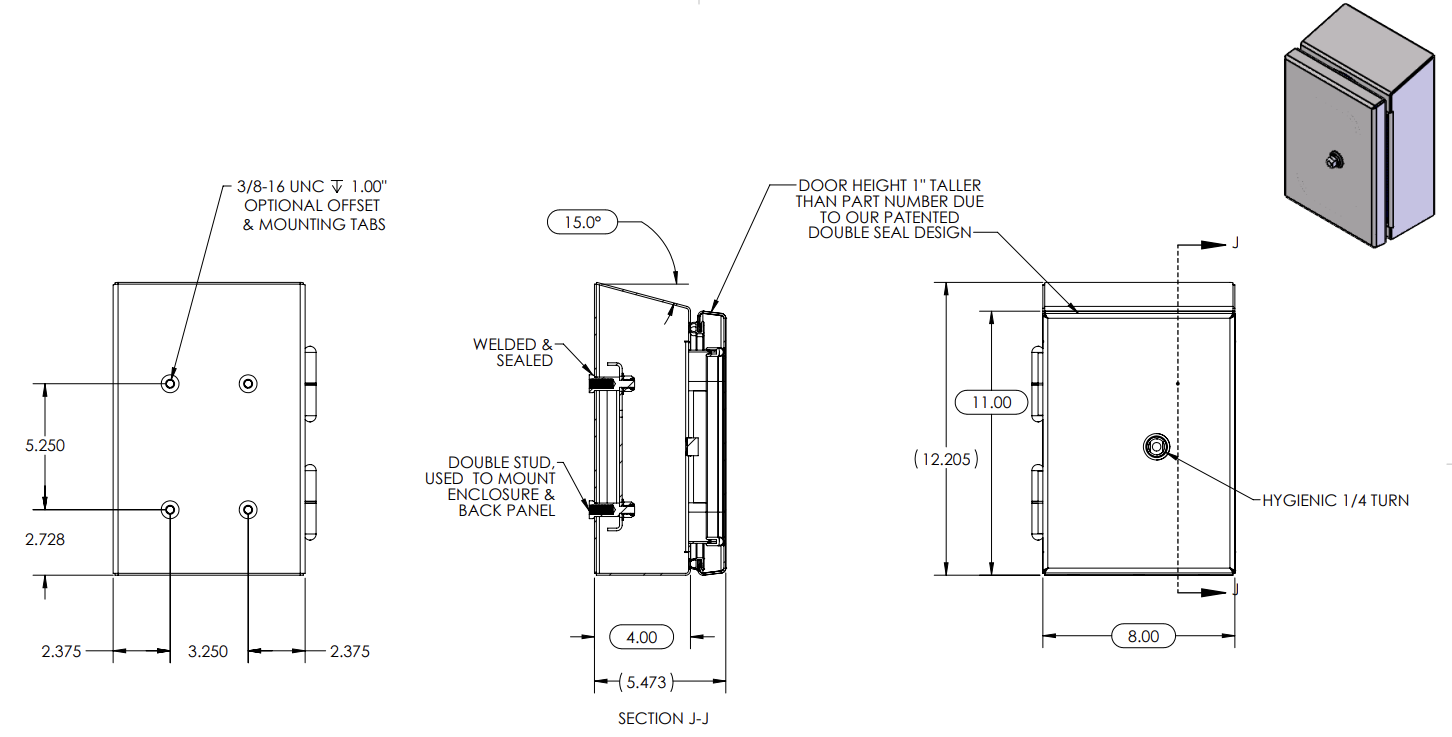

Specifications

• Height: 10.00″
• Width: 8.00″
• Depth: 4.00″
• Pitch: °15.00
• Weight: 13.12 lbs
• Enclosure Door: Single-Door, Sloped Top Single-Door
• Thickness: 14ga
• Material: AISI 304 Stainless Steel
• Compatible Back Panel: X10P08G
• Back Panel Material: Galvanized
• Finish: Brushed #4 Outside w/ 2B Inside Finish
• Latch Method: Hygienic Quarter Turn
• Hinge Type: Hygienic Bullet Hinge
• Seal Design: Patented Double Seal Technology

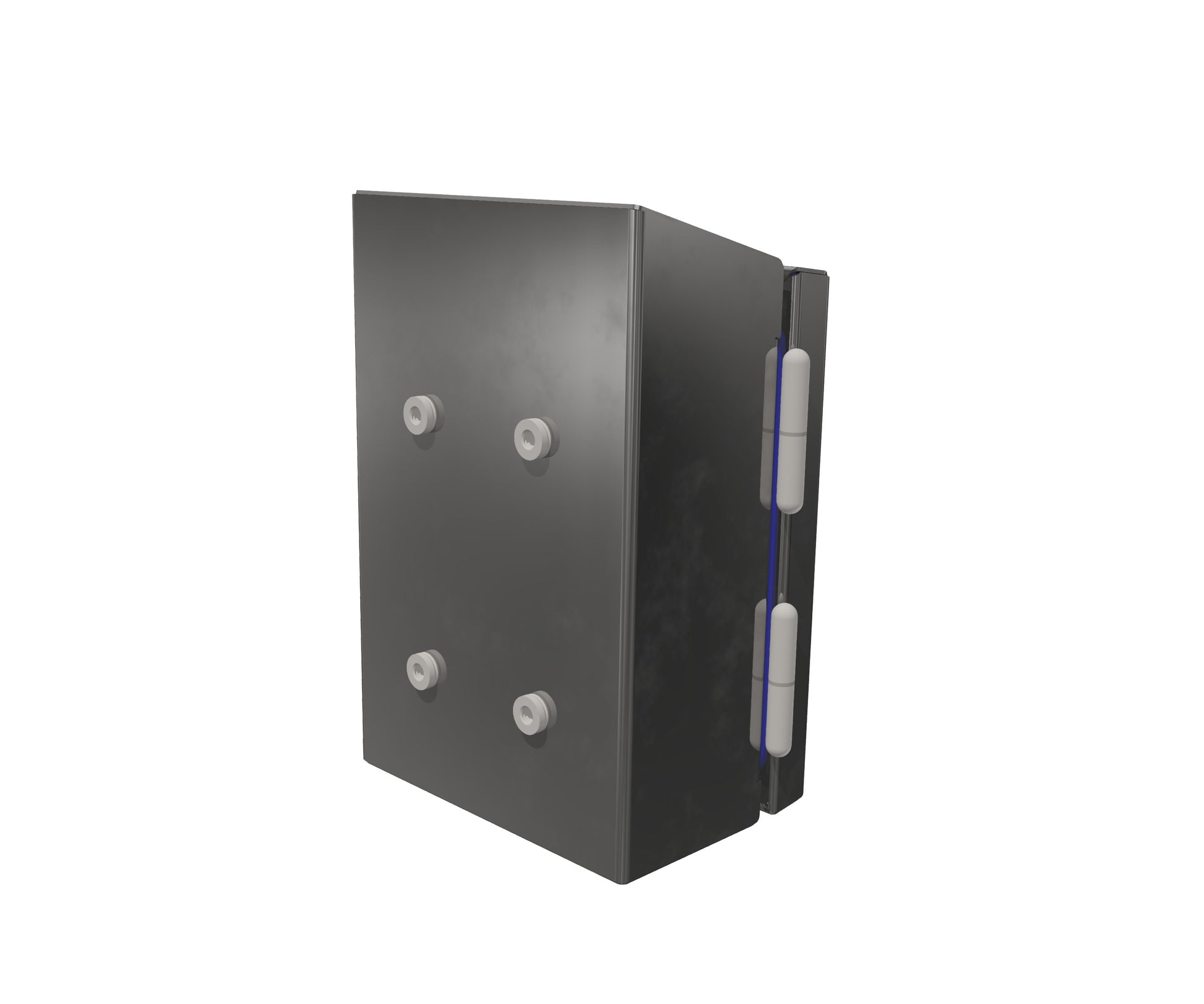

• Mount Type: Patented 3/8"-16 UNC Double Stud Wall-Mount
• Gasket Material: Blue EPDM - Field Replaceable
• Includes: Grounding Hardware; Printer Pocket


Built Tougher Than The Rest

Our washdown ratings surpass competing models, fully matching or exceeding the performance of WS100804SS and HSDS110804SS.
