XSF201612H15

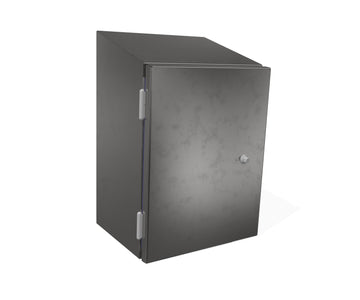

20H × 16W × 12D – Slope Forward Stainless Steel Single-Door Enclosure

With Hygienic Quarter Turn and Patented Double Seal & Double Stud Technologies

Specifications

• Height: 20.00″
• Width: 16.00″
• Depth: 12.00″
• Pitch: °15.00
• Weight: 52.58 lbs
• Enclosure Type: Single-Door, Sloped Top Single Door
• Thickness: 14ga
• Material: AISI 304 Stainless Steel
• Compatible Back Panel: X20P16G
• Back Panel Material: Galvanized
• Finish: Brushed #4 Outside w/ 2B Inside Finish
• Latch Method: Hygienic Quarter Turn
• Hinge Type: Hygienic Bullet Hinge

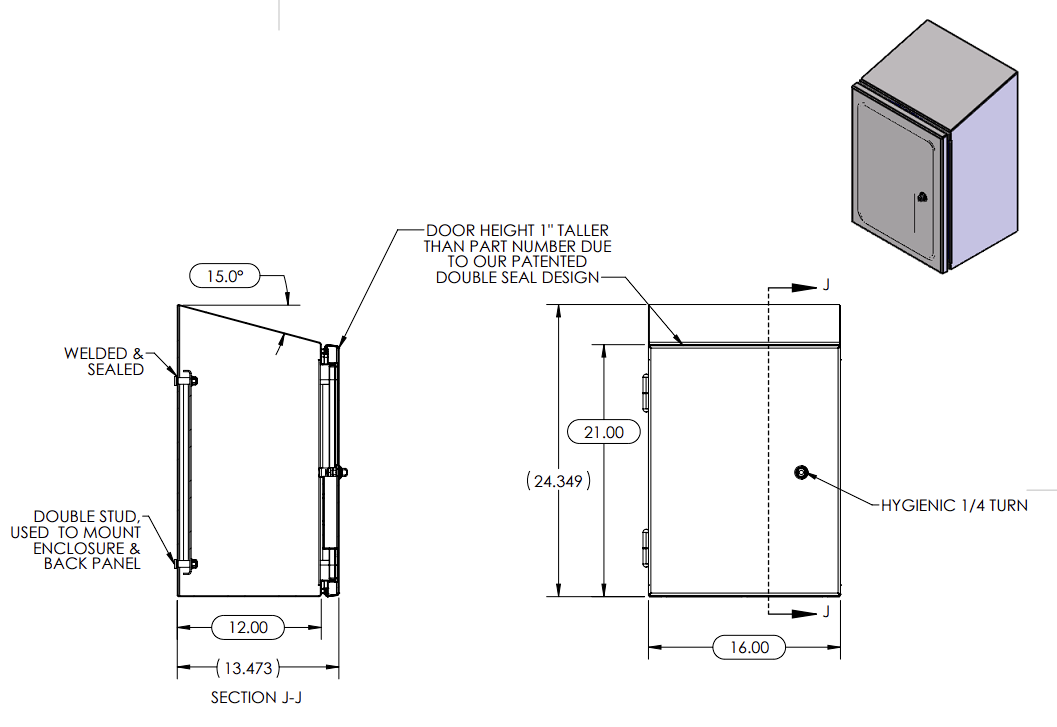

• Seal Design: Patented Double Seal Technology

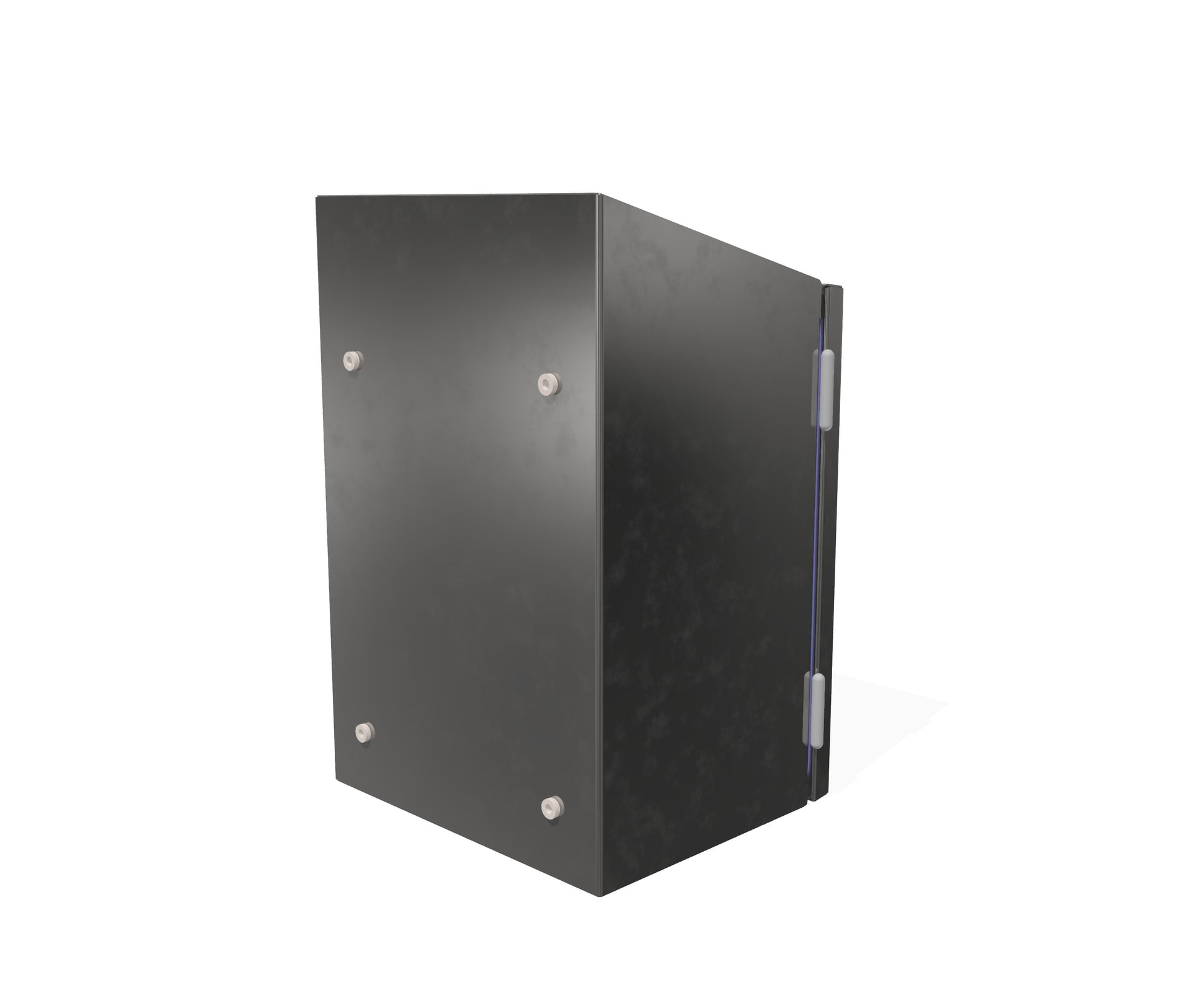

• Mount Type: Patented 3/8"-16 UNC Double Stud Wall-Mount
• Gasket Material: Blue EPDM - Field Replaceable
• Includes: Grounding Hardware; Printer Pocket

Built Tougher Than The Rest

Our washdown ratings surpass competing models, fully matching or exceeding the performance of WS201612SS.
