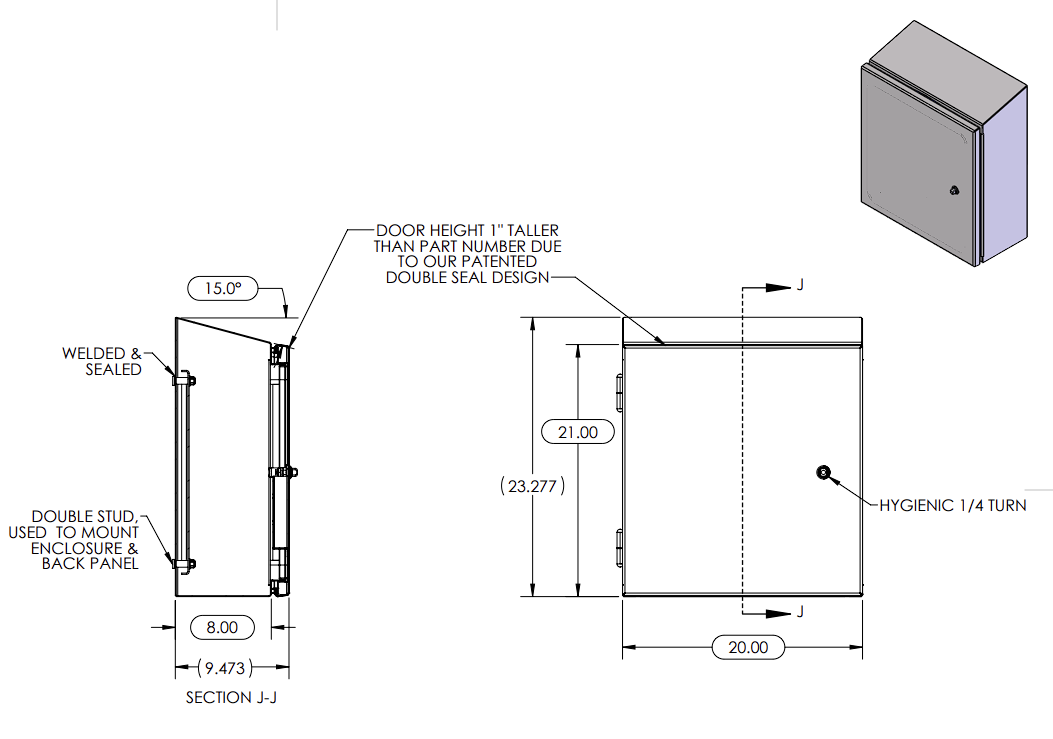

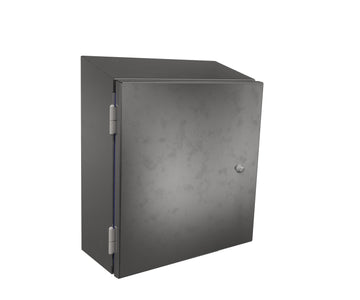

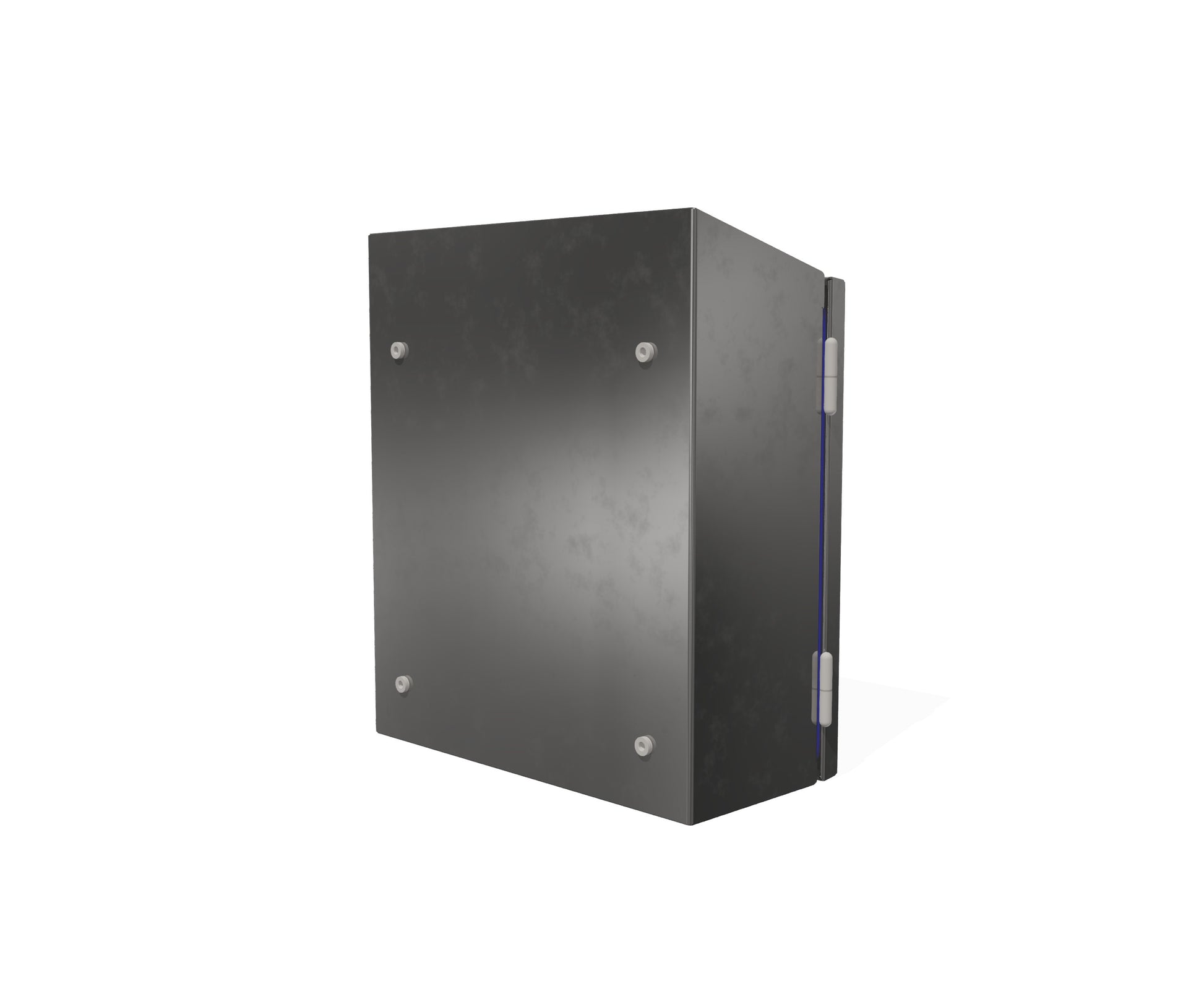

XSF202008H15

20H × 20W × 8D – Slope Forward Stainless Steel Single-Door Enclosure

with Hygienic Quarter Turn and Patented Double Seal & Double Stud Technologies

Specifications

• Height: 20.00″
• Width: 20.00″
• Depth: 8.00″
• Pitch: °15.00
• Weight: 53.47 lbs
• Enclosure Door: Single-Door, Sloped Top Single-Door
• Thickness: 14ga
• Material: AISI 304 Stainless Steel
• Compatible Back Panel: X20P20G
• Back Panel Material: Galvanized
• Finish: Brushed #4 Outside w/ 2B Inside Finish
• Latch Method: Hygienic Quarter Turn
• Hinge Type: Hygienic Bullet Hinge
• Seal Design: Patented Double Seal Technology
• Mount Type: Patented 3/8"-16 UNC Double Stud Wall-Mount
• Gasket Material: Blue EPDM - Field Replaceable
• Includes: Grounding Hardware; Printer Pocket


Built Tougher Than The Rest

Our washdown ratings surpass competing models, fully matching or exceeding the performance of WS202008SS and HSDH202008SS.
